Have you ever looked at a massive lorry rumbling down the highway and wondered what complex machinery lies beneath its impressive exterior? Beyond the sheer size and power, a modern lorry is a marvel of engineering, a sophisticated symphony of interconnected systems designed to transport heavy loads safely and efficiently across vast distances. Understanding the component parts of a lorry isn’t just for mechanics; it’s crucial for drivers, logistics managers, fleet owners, and anyone who relies on these workhorses of the economy.

As an expert blogger and professional in the automotive and logistics sector, I’ve spent years dissecting the intricacies of these vehicles. My goal with this comprehensive guide is to peel back the layers and explore each vital component, providing you with an in-depth understanding that goes far beyond a simple list. We’ll delve into their functions, their importance, and what makes them indispensable to a lorry’s operation, ensuring you gain real value and practical insights.

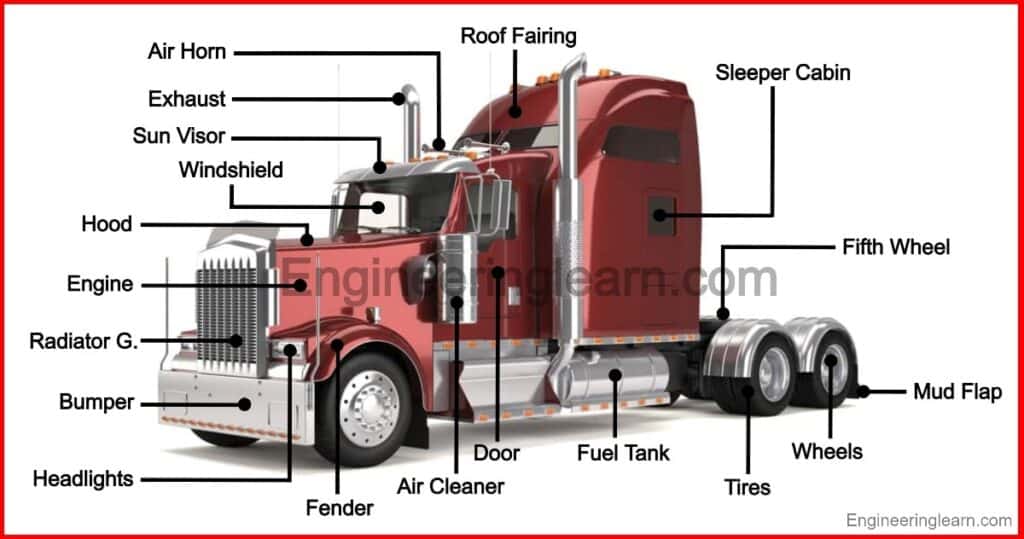

Unveiling the Anatomy of a Lorry: A Deep Dive into Its Essential Component Parts

The Foundation: Chassis and Frame – The Lorry’s Skeleton

Every robust structure needs a strong foundation, and for a lorry, that’s the chassis and frame. Often considered the backbone of the vehicle, the chassis is a rigid framework that supports all the other components – the engine, cab, drivetrain, suspension, and ultimately, the load itself. Without a sturdy chassis, a lorry would simply crumple under its own weight, let alone the colossal cargo it’s designed to carry.

Based on my extensive experience working with heavy vehicles, a strong, well-engineered chassis is non-negotiable for both safety and durability. It’s typically constructed from heavy-duty steel beams, often forming a ladder-like structure that provides immense torsional rigidity and strength. This design allows it to withstand the constant stresses of heavy loads, uneven roads, and the dynamic forces generated during acceleration and braking. Any compromise in its integrity can lead to catastrophic failures.

The chassis also plays a pivotal role in the vehicle’s handling and stability. It distributes weight evenly, providing a stable platform for the suspension system to work effectively. Furthermore, it’s the primary anchor point for crucial safety systems, including crumple zones and impact absorption structures, designed to protect occupants in the event of a collision. Regular inspection for cracks, bends, or corrosion in the frame is a fundamental part of any comprehensive lorry maintenance schedule.

The Heartbeat: Engine and Powerplant – Generating Immense Force

If the chassis is the skeleton, the engine is undoubtedly the heart of the lorry, pumping life and power into every system. For heavy-duty applications like lorries, diesel engines are overwhelmingly the preferred choice, celebrated for their superior torque output, fuel efficiency under load, and remarkable durability. These engines are engineered to operate continuously for thousands of hours, enduring immense pressures and temperatures.

A typical diesel engine in a lorry comprises several critical components working in perfect synchronization. Cylinders, pistons, a crankshaft, and a camshaft form the core mechanics, converting fuel combustion into rotational motion. Modern lorry engines also heavily rely on turbochargers, which force more air into the engine, significantly boosting power output and efficiency, especially when climbing steep gradients or accelerating with a full load. Fuel injection systems are highly sophisticated, precisely metering fuel into the cylinders for optimal combustion and reduced emissions.

From a practical standpoint, the engine’s power output directly translates to a lorry’s capacity to haul heavy freight and maintain speed on diverse terrains. Pro tips from us emphasize that consistent engine maintenance, including regular oil changes, filter replacements, and prompt attention to warning lights, is paramount. Ignoring these signs can lead to costly breakdowns, reduced fuel economy, and even premature engine failure, directly impacting operational efficiency and profitability.

Putting Power to the Road: The Drivetrain – Translating Force into Motion

The drivetrain is the complex system responsible for taking the raw power generated by the engine and delivering it to the wheels, ultimately propelling the lorry forward. It’s a series of interconnected components that precisely manage torque and speed, allowing the driver to control the vehicle’s movement under varying conditions.

The Clutch and Gearbox (Transmission)

The journey of power typically begins with the clutch, a crucial component that disengages and engages the engine from the gearbox. This allows the driver to change gears smoothly without grinding them, or to bring the vehicle to a stop without stalling the engine. In lorries, clutches are designed to handle immense torque, ensuring a reliable connection between the engine and the rest of the drivetrain.

Following the clutch is the gearbox, or transmission, which is arguably one of the most sophisticated component parts of a lorry. This system uses a series of gears to alter the torque and speed ratio between the engine and the driving wheels. Manual transmissions, common in older or specific heavy-duty lorries, require the driver to select gears manually, offering precise control. However, automated manual transmissions (AMTs) and fully automatic transmissions are becoming increasingly prevalent, reducing driver fatigue and optimizing fuel efficiency through electronically controlled gear changes. The right gear selection is vital for managing heavy loads and navigating challenging terrain.

Propeller Shaft, Axles, and Differential

From the gearbox, the power is typically transmitted through a propeller shaft (or driveshaft). This robust shaft connects the gearbox to the rear axles, rotating to transfer the engine’s power. It’s designed to accommodate changes in angle and length as the lorry’s suspension moves, ensuring a continuous flow of power.

The axles are the sturdy shafts that support the weight of the lorry and its cargo, while also transferring the rotational force from the propeller shaft to the wheels. Lorries usually have multiple axles, with specific axles designated as "drive axles" (which receive power) and "non-drive axles" (which simply support weight). The more axles, the greater the load-carrying capacity and weight distribution.

Finally, at the heart of the drive axle is the differential. This ingenious device allows the wheels on the same axle to rotate at different speeds, which is absolutely essential when turning. Without a differential, the inner wheel would skid and drag during a turn, causing immense stress on the drivetrain and tires. Common mistakes to avoid include ignoring unusual noises from the drivetrain, such as grinding or clunking, as these often indicate a problem with the differential, gears, or universal joints, which can quickly escalate into a major repair.

The Driver’s Command Center: The Cab – Office and Sanctuary

For a lorry driver, the cab is much more than just a place to sit; it’s their office, their control center, and often, their home away from home for days or even weeks on end. As a professional in the logistics sector, I understand that the design and comfort of the cab significantly impact driver performance, safety, and well-being. Modern lorry cabs are meticulously engineered for ergonomics, safety, and functionality.

The dashboard is a hive of information, featuring gauges for speed, RPM, fuel level, air pressure for the brakes, and various warning lights. Controls for lighting, climate, entertainment, and advanced driver-assistance systems (ADAS) are strategically placed for easy access. Comfort features like air-suspended seats, adjustable steering columns, and climate control are standard, aiming to minimize fatigue during long hauls.

Safety within the cab is paramount. Beyond robust construction, cabs include features like multi-point seatbelts, airbags, and reinforced pillars to protect occupants in a collision. Sleeper cabs, with integrated beds and sometimes even small kitchens or entertainment systems, are essential for long-distance drivers, providing a crucial space for rest and recovery. From a driver’s perspective, a well-designed, comfortable, and functional cab is crucial for maintaining focus, reducing stress, and ensuring safe operations over thousands of miles.

Bringing it to a Halt: The Braking System – Ultimate Control and Safety

The ability to stop a massive, heavily loaded lorry safely and effectively is just as critical, if not more so, than its ability to move. The braking system is a complex network designed to bring these heavy vehicles to a controlled stop, and it’s one of the most vital component parts of a lorry for road safety. Unlike cars that typically use hydraulic brakes, lorries predominantly rely on air brakes due to their power, reliability, and suitability for heavy loads.

The air brake system starts with an air compressor, which builds and maintains a supply of compressed air in storage tanks. When the driver presses the brake pedal, this compressed air is released through control valves to brake chambers located at each wheel. Inside the brake chambers, the air pressure forces a diaphragm or piston, which in turn actuates the brake shoes against the brake drum (or pads against a disc), creating friction that slows and stops the wheel.

Modern lorries are also equipped with Anti-lock Braking Systems (ABS), which prevent the wheels from locking up during hard braking, allowing the driver to maintain steering control. Furthermore, exhaust brakes or engine retarders are often integrated, using the engine’s compression to slow the vehicle, reducing wear on the service brakes, especially on long descents. Pro tips from us: Never compromise on brake maintenance. Regular inspections of air lines, brake chambers, drums/discs, and pads are essential. Any sign of reduced braking efficiency, unusual noises, or warning lights must be addressed immediately to prevent dangerous situations.

Smooth Rides and Stability: The Suspension System – Absorbing the Shocks

Imagine driving a lorry carrying tons of cargo without a proper suspension system; every bump would be transmitted directly to the chassis, damaging the vehicle, the cargo, and subjecting the driver to an incredibly uncomfortable, if not dangerous, ride. The suspension system is designed to absorb shocks and vibrations from the road, ensuring a smoother ride, protecting the cargo, and maintaining tire contact with the road for better control.

Lorry suspension systems are typically robust, designed to handle immense loads. Common types include leaf springs, which are layers of metal strips stacked together, and air suspension systems, which use air bellows to cushion the ride. Air suspension offers superior ride comfort and can often be adjusted to maintain a consistent ride height regardless of the load, improving stability and handling. Shock absorbers work in conjunction with springs to dampen oscillations, preventing the lorry from bouncing excessively after hitting a bump.

A well-maintained suspension not only improves driver comfort but also significantly protects your cargo from damage due to road imperfections. It also plays a crucial role in maintaining tire contact with the road, which is vital for braking and steering effectiveness. Regular checks for worn springs, leaking shock absorbers, or damaged air bellows are essential for ensuring the longevity of the vehicle and the safety of its operation.

Guiding the Beast: The Steering System – Precision and Control

Maneuvering a multi-ton lorry requires a steering system that is both robust and precise. The steering system allows the driver to control the direction of the vehicle, and modern lorries almost universally employ power steering to reduce the physical effort required, making long hours behind the wheel less fatiguing.

The system typically consists of the steering wheel, which is connected via a steering column to a steering box or rack-and-pinion mechanism. This mechanism then translates the rotational motion of the steering wheel into linear motion, which is transferred to the wheels via a series of linkages, including tie rods and steering arms. Power steering systems use hydraulic fluid or electric motors to assist the driver, amplifying their input and making the heavy wheels much easier to turn.

Precision in steering is paramount for safety, especially when navigating tight spaces, making turns, or maintaining a straight line on the highway. Common mistakes operators often make include ignoring loose steering, excessive play in the steering wheel, or unusual noises when turning. These symptoms can indicate worn components such as tie rod ends, kingpins, or issues within the power steering pump or fluid, all of which can compromise control and lead to dangerous situations. Regular lubrication and inspection of steering components are critical.

Wheels and Tires: The Contact Point with the Road – Crucial for Safety and Efficiency

The wheels and tires are the only component parts of a lorry that actually touch the road, making them fundamentally important for safety, performance, and fuel efficiency. Given the immense weight and forces involved, lorry wheels and tires are engineered to be incredibly robust and durable.

Lorry wheels are typically made from steel or aluminum alloys, with alloy wheels offering benefits like lighter weight (which can improve fuel economy) and better heat dissipation. Tires, on the other hand, come in various types, including radial and bias-ply, each designed for specific applications, load ratings, and road conditions. Tread patterns are crucial for grip, water displacement, and wear life.

Maintaining proper tire pressure is perhaps the single most critical aspect of tire maintenance. Incorrect pressure can lead to uneven wear, reduced fuel efficiency, increased risk of blowouts, and compromised handling and braking. Pro tips: Regular tire checks, including pressure monitoring, tread depth measurement, and inspection for cuts or bulges, save lives and money. Tire rotation and proper wheel alignment also extend tire life and improve vehicle performance.

The Lifelines: Electrical and Fuel Systems – Powering and Feeding the Lorry

Just like the human body, a lorry relies on complex systems to power its various functions and to deliver the energy it needs to operate. These are the electrical and fuel systems.

Electrical System

The electrical system is the nervous system of the lorry, powering everything from the starter motor to the complex onboard computers and safety features. It comprises the battery, which stores electrical energy; the alternator, which generates electricity to recharge the battery and power electrical components while the engine is running; and the starter motor, which cranks the engine to start it. A vast network of wiring, fuses, and relays connects all these components, powering lights, wipers, instruments, climate control, and advanced electronic control units (ECUs) that manage engine performance, braking, and more. A reliable electrical system is crucial for starting, operating, and ensuring all safety features function correctly.

Fuel System

The fuel system is the digestive system, responsible for storing and delivering fuel to the engine. It includes a large fuel tank, a fuel pump that draws fuel from the tank, and a series of filters that remove impurities before the fuel reaches the engine’s injectors. Modern diesel engines use highly precise fuel injectors that atomize fuel into a fine mist for optimal combustion. Clean fuel and a well-maintained fuel system are vital for engine health, fuel efficiency, and minimizing emissions. Clogged filters or faulty injectors can significantly degrade engine performance and lead to costly repairs.

The Unseen Helper: Exhaust System – Managing Emissions and Noise

While often overlooked, the exhaust system plays a critical role in both the performance and environmental compliance of a lorry. Its primary functions are to channel exhaust gases away from the engine, reduce noise, and, most importantly, minimize harmful emissions into the atmosphere.

The system typically includes an exhaust manifold, which collects gases from the engine cylinders, followed by a series of pipes, catalytic converters, and Diesel Particulate Filters (DPFs). Catalytic converters use chemical reactions to convert toxic gases like carbon monoxide and nitrogen oxides into less harmful substances. DPFs trap soot particles from diesel exhaust, which are then periodically burned off through a process called regeneration. Finally, a muffler reduces engine noise. Given the increasing focus on environmental regulations, the exhaust system, particularly the DPF and Selective Catalytic Reduction (SCR) systems, are among the most technologically advanced and crucial component parts of a lorry for compliance. You can learn more about emission standards and their impact on vehicle design from trusted sources like the Environmental Protection Agency (EPA).

Connecting the Load: Trailer Coupling (Fifth Wheel) – The Secure Link

For articulated lorries, the trailer coupling, commonly known as the fifth wheel, is one of the most ingenious and critical components. This heavy-duty coupling mechanism securely links the tractor unit (the front part of the lorry) to the semi-trailer, allowing them to pivot and articulate independently while ensuring a safe and robust connection for hauling immense loads.

The fifth wheel is a large, flat, horseshoe-shaped plate mounted on the tractor unit, with a kingpin from the trailer fitting into a locking jaw mechanism on the fifth wheel. This design allows for flexible movement in multiple directions, enabling the lorry to turn corners and traverse uneven terrain without the trailer becoming detached. Safety checks, such as ensuring the kingpin is fully locked, the locking handle is in place, and there are no gaps between the fifth wheel and trailer apron, are absolutely vital before every journey. A failure in this coupling can lead to severe accidents. Understanding these intricacies is crucial, and something I’ve emphasized throughout my career, as proper coupling procedures are fundamental to safe operation. For further reading on operational safety, you might be interested in our article on Understanding Lorry Maintenance Schedules.

Advanced Safety and Technology Features: The Modern Edge

Modern lorries are no longer just mechanical beasts; they are increasingly sophisticated machines packed with advanced safety and technology features. These systems are designed to assist the driver, prevent accidents, and improve overall operational efficiency.

Advanced Driver-Assistance Systems (ADAS) are becoming standard, including features like Lane Keeping Assist (which helps keep the lorry centered in its lane), Adaptive Cruise Control (which automatically adjusts speed to maintain a safe distance from the vehicle ahead), and Automatic Emergency Braking (which can autonomously apply brakes to prevent or mitigate collisions). Telematics systems provide real-time data on vehicle performance, location, and driver behavior, allowing fleet managers to optimize routes, monitor fuel consumption, and ensure compliance. These technologies represent a significant leap forward in lorry safety and efficiency, transforming how heavy vehicles operate.

The Indispensable Role of Regular Maintenance

After exploring each of these vital component parts of a lorry, it becomes abundantly clear that regular and meticulous maintenance is not merely a recommendation but an absolute necessity. Every component, from the smallest sensor to the mighty engine block, contributes to the overall safety, reliability, and efficiency of the vehicle. Neglecting even one part can have a domino effect, leading to costly repairs, unexpected breakdowns, and, most critically, compromised safety.

Pre-trip inspections, scheduled servicing, and prompt attention to any unusual sounds or warning lights are fundamental responsibilities for any lorry operator or driver. Investing in preventive maintenance is always more cost-effective than reactive repairs, and it significantly extends the lifespan of these valuable assets. Understanding the individual roles of these components empowers you to make informed decisions regarding their care and upkeep. For more insights into optimizing your fleet, consider reading our piece on Choosing the Right Lorry for Your Business Needs.

Conclusion: A Symphony of Engineering for the Open Road

The lorry is a testament to human ingenuity, a complex machine whose many component parts work in intricate harmony to perform the arduous task of transporting goods across our world. From the unyielding strength of its chassis to the sophisticated intelligence of its onboard computers, each element plays a critical role in ensuring safety, efficiency, and reliability.

By gaining a comprehensive understanding of these essential components, you’re not just learning about mechanical parts; you’re gaining insight into the very foundation of modern logistics and transportation. This knowledge empowers you to appreciate the engineering marvels that traverse our highways daily, and more importantly, to ensure their proper operation and maintenance. Prioritizing knowledge and diligence in care will undoubtedly lead to safer roads, more efficient operations, and a longer, more productive life for these indispensable vehicles.
