In the world of logistics, moving goods from point A to point B is a precise art. Whether you’re a seasoned fleet manager, a small business owner, or an individual planning a big move, understanding box truck dimensions is not just helpful – it’s absolutely crucial. It’s the difference between a smooth operation and a costly, frustrating roadblock.

Based on my experience in the trucking and logistics sector, overlooking even a single dimension can lead to wasted fuel, damaged cargo, legal issues, and missed deadlines. This comprehensive guide will meticulously break down 26 critical box truck dimensions, providing you with the expert knowledge to make informed decisions. We’ll go far beyond basic measurements, exploring the nuances that truly impact your operations and bottom line.

Unlocking the Road Ahead: A Deep Dive into 26 Essential Box Truck Dimensions You Need to Know

Why Box Truck Dimensions Matter: More Than Just Numbers

Before we delve into the specifics, let’s understand why these dimensions hold so much weight. They are the backbone of efficient planning, directly influencing everything from route selection and fuel consumption to loading capacity and legal compliance. Ignoring them is like building a house without a blueprint.

The right dimensions ensure your cargo fits securely, your truck navigates safely through urban streets or underpasses, and you remain within legal weight limits. It also impacts driver comfort and the overall longevity of your vehicle. Let’s unpack these vital measurements.

Decoding the Exterior: What You See on the Road

The external dimensions of a box truck dictate its physical presence and how it interacts with its environment. These are often the first numbers you’ll encounter and are critical for navigating roads, parking, and regulatory compliance.

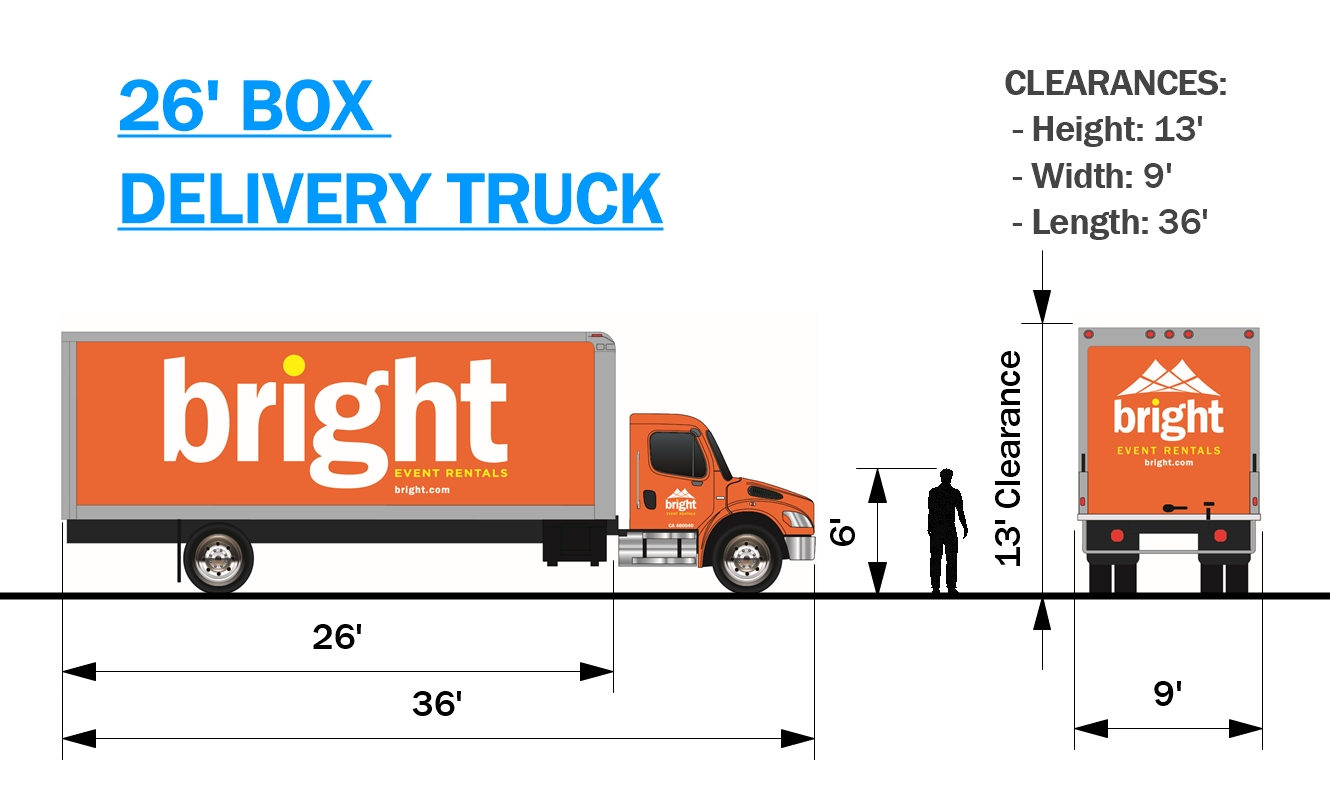

1. Overall Length

This dimension measures the truck from its furthest front point (usually the bumper) to its furthest rear point. It encompasses the cab, chassis, and the entire cargo box. Understanding overall length is vital for navigating tight turns, parking spaces, and ensuring compliance with state and federal length restrictions, especially on smaller roads or in urban areas.

For instance, a standard 26-foot box truck might have an overall length closer to 33-35 feet, including the cab. Miscalculating this can lead to serious maneuvering challenges. Pro tips from us: always factor in an extra few feet for safety and unexpected obstacles.

2. Overall Width

The overall width is measured from the widest points of the truck, typically including the side mirrors. This measurement is crucial for driving through narrow lanes, toll booths, and city streets. It also determines if the truck can fit into specific loading dock configurations or storage facilities.

Common mistakes to avoid are forgetting to include mirrors in this measurement, which can add significant inches and cause unexpected scrapes or damage. Always check local road regulations, as some areas have width restrictions for commercial vehicles.

3. Overall Height

Measured from the ground to the very top of the truck (including any roof-mounted equipment like a refrigeration unit or fairing), overall height is perhaps one of the most critical dimensions. It directly impacts whether your truck can safely pass under bridges, tunnels, and low overhead clearances.

Ignoring this can lead to catastrophic accidents, often referred to as "bridge strikes." Always know your truck’s exact height and be vigilant for clearance signs, especially when entering new territories.

4. Wheelbase

The wheelbase is the distance between the center of the front axle and the center of the rear axle(s). A longer wheelbase generally provides a smoother ride and better stability, particularly at higher speeds. However, it also increases the truck’s turning radius, making it less agile in tight spaces.

Conversely, a shorter wheelbase offers better maneuverability but can feel less stable with heavy loads. Understanding this helps in selecting a truck suitable for your typical driving environment – open highways versus congested city streets.

5. Ground Clearance

Ground clearance is the distance from the lowest part of the truck’s chassis to the ground. This dimension is important for avoiding damage when driving over uneven terrain, speed bumps, or navigating steep ramps. Trucks with low ground clearance are more susceptible to scraping the undercarriage.

While most box trucks operate on paved surfaces, knowing your ground clearance is vital if your routes include construction sites or unpaved roads. It also impacts the angle at which you can approach a loading dock.

6. Turning Radius

The turning radius refers to the smallest circular path a truck can take when making a full turn. This is directly affected by the wheelbase and the steering geometry. A larger turning radius means the truck needs more space to complete a turn.

For urban deliveries or navigating crowded depots, a tight turning radius is a significant advantage. Based on my experience, drivers often underestimate the space required, leading to multiple-point turns or even minor collisions.

Inside the Cargo Box: Maximizing Your Load

These dimensions define the usable space within the truck’s cargo area. They are paramount for efficient loading, protecting your goods, and ensuring you can carry everything you need in one trip.

7. Interior Cargo Length

This is the measurement from the inside of the rear door to the inside of the front wall of the cargo box. It determines the maximum length of items you can transport. When calculating, always consider the space needed for load securement devices like straps or E-track systems, which can slightly reduce usable length.

It’s common for people to confuse the advertised truck length (e.g., "26-foot truck") with the actual interior cargo length, which is always slightly less. Always measure the actual interior if precise fitting is critical.

8. Interior Cargo Width

Measured from one inside wall to the other inside wall of the cargo box, this dimension dictates how many items can be placed side-by-side. It’s crucial for palletized loads, as standard pallets (40×48 inches) require specific widths for efficient loading.

Keep in mind that wheel wells can intrude into the cargo area, creating narrower sections. Pro tips from us: always measure between the wheel wells, as this is often the limiting factor for wider items.

9. Interior Cargo Height

This is the vertical measurement from the cargo floor to the inside of the roof of the box. It determines the maximum height of items you can load and how many layers of cargo can be stacked. Adequate interior height is essential for tall furniture, appliances, or multi-level shelving systems.

Remember to account for any internal bracing, lighting, or insulation that might slightly reduce the absolute maximum height. Overhead door mechanisms can also intrude when the door is open.

10. Usable Cube Space (Volume)

Calculated by multiplying the interior length, width, and height, this gives you the total cubic footage available for cargo. This is the ultimate metric for understanding how much you can truly fit. Freight is often quoted by its cubic volume, making this a critical number for cost estimation and logistics planning.

Don’t just look at one dimension; the interplay of all three creates your usable volume. Common mistakes to avoid are forgetting that not all cubic space is "usable" due to irregular cargo shapes or packing inefficiencies.

11. Bed Height from Ground

This dimension measures the height of the cargo floor from the ground. A lower bed height makes loading and unloading easier, especially for manual operations or with a ramp. Trucks designed for city deliveries often have lower bed heights to facilitate quicker access.

Conversely, some heavy-duty box trucks might have higher beds, which can require a longer ramp or a more robust liftgate. Always consider the ergonomics and safety of your loading crew.

12. Interior Wall Thickness

While seemingly minor, the thickness of the interior walls of the cargo box can slightly reduce the usable interior width and length. This is particularly relevant in insulated or refrigerated box trucks, where the walls are thicker to maintain temperature.

Even standard dry freight boxes have some wall thickness for structural integrity. A few inches lost on each side can add up, potentially affecting how many pallets you can fit.

Access Points: Door Dimensions and Beyond

The dimensions of your truck’s doors and access equipment are just as important as the cargo space itself. They determine what you can actually get in and out of the truck.

13. Rear Door Opening Width

This is the clear, unobstructed width of the rear door opening when fully open. It’s often slightly less than the interior cargo width due to the door frame and hardware. This dimension dictates the maximum width of items that can be loaded or unloaded from the rear.

For palletized goods, ensure this width can accommodate your pallets with a little wiggle room. Trying to force oversized items through a narrow opening is a common cause of damage.

14. Rear Door Opening Height

Similar to the width, this is the clear, unobstructed height of the rear door opening when fully open. It’s usually less than the interior cargo height. Tall items, such as refrigerators or wardrobes, must clear this height.

Be mindful of roll-up doors, which can have an overhead mechanism that slightly reduces the effective opening height compared to swing-out doors. Always measure the actual clear opening.

15. Side Door Opening Width (if applicable)

Some box trucks, especially those used for parcel delivery or multi-stop routes, feature a side door. Its width is critical for quickly accessing specific cargo without having to unload from the rear.

If your operation relies on segregated cargo or frequent small deliveries, a generously sized side door can significantly improve efficiency.

16. Side Door Opening Height (if applicable)

Just like the rear door, the side door’s height determines the maximum vertical dimension of items that can be loaded or retrieved from the side. This is particularly useful for hand-loaded items or small equipment.

Ensure this height is comfortable for your crew to maneuver items without excessive bending or straining.

17. Ramp Length

If your truck utilizes a ramp for loading and unloading, its length is crucial for creating a safe and manageable incline. A shorter ramp means a steeper incline, which can be difficult or dangerous for heavy items, pallet jacks, or even people.

Conversely, a longer ramp provides a gentler slope but requires more space behind the truck to deploy. Consider the weight of your cargo and the type of equipment used when assessing ramp length needs.

18. Ramp Width

The width of the ramp must be sufficient to accommodate your loading equipment (e.g., hand trucks, pallet jacks) and the items being moved. A ramp that’s too narrow poses a stability and safety risk.

Always ensure there’s enough clearance on either side of your equipment for safe operation.

19. Liftgate Capacity

For trucks equipped with a liftgate, its capacity is the maximum weight it can safely lift. This is a critical safety and operational dimension. Exceeding the liftgate’s capacity can lead to equipment failure, injury, or damage to your cargo.

Always know your liftgate’s specific rating and never push it beyond its limits. Pro tips from us: factor in the weight of the pallet jack or dolly along with the cargo itself.

The Weighty Matters: Capacities and Limits

Weight-related dimensions are not just about what you can carry; they’re about safety, legality, and the truck’s structural integrity. Exceeding these limits is a serious offense.

20. Gross Vehicle Weight Rating (GVWR)

The GVWR is the maximum permissible total weight of the truck, including the vehicle itself, its fuel, driver, passengers, and all cargo. This is a crucial legal limit set by the manufacturer. Exceeding the GVWR is illegal, unsafe, and can void warranties or lead to significant fines.

Always be aware of your truck’s GVWR and monitor your loaded weight. For more insights into choosing the right commercial vehicle, check out our guide on .

21. Payload Capacity

Payload capacity is the maximum weight of cargo that a truck can legally carry. It is calculated by subtracting the truck’s curb weight (empty weight) from its GVWR. This is the most direct measure of how much freight you can transport.

When calculating payload, remember to include the weight of the driver, any passengers, and extra equipment like moving blankets or dollies. It’s often less than people assume.

22. Curb Weight

Curb weight is the total weight of the truck when it’s empty, including a full tank of fuel and all standard equipment, but no cargo, driver, or passengers. This is the baseline weight from which payload capacity is determined.

Understanding curb weight helps you calculate your true payload and ensure you’re not inadvertently exceeding limits even before loading cargo.

23. Gross Combined Weight Rating (GCWR)

If your box truck is equipped for towing, the GCWR is the maximum permissible total weight of the truck, its cargo, and any attached trailer with its cargo. This is a higher rating than GVWR and is critical for safe towing operations.

Never exceed the GCWR, as it compromises braking, acceleration, and overall control of the combined vehicles.

24. Front Axle Weight Rating (FAWR)

This is the maximum weight that can be safely supported by the front axle assembly of the truck. Proper weight distribution is key; overloading the front axle can affect steering and braking.

It’s not just about total weight, but how that weight is distributed across the truck’s axles.

25. Rear Axle Weight Rating (RAWR)

Similarly, the RAWR is the maximum weight that can be safely supported by the rear axle(s) of the truck. Overloading the rear axle can lead to tire failure, suspension damage, and instability.

Always distribute your cargo evenly and within these individual axle limits to ensure safety and prevent undue stress on the truck’s components. For detailed federal regulations on truck sizes and weights, refer to the Federal Motor Carrier Safety Administration (FMCSA) website .

Operational & Auxiliary Dimensions

These additional dimensions, while not always the first considered, play a vital role in the day-to-day operation and functionality of your box truck.

26. Fuel Tank Capacity

The fuel tank capacity, measured in gallons or liters, determines the truck’s range between refueling stops. For long-haul operations, a larger fuel tank reduces downtime and can lead to better fuel efficiency planning.

For local deliveries, a standard tank might suffice. Always consider your typical route length when assessing fuel capacity needs.

Pro Tips for Choosing the Right Box Truck Dimensions

Selecting the perfect box truck involves more than just picking the biggest or cheapest option. Here are some expert tips:

• Know Your Typical Cargo: What’s the heaviest item? The tallest? The widest? Measure your actual items, not just estimates. This is the single most important factor.
• Factor in Loading/Unloading: Do you need a ramp? A liftgate? How high are your typical loading docks? These influence bed height and access dimensions.
• Consider Your Routes: Are you navigating tight city streets, or open highways? This impacts overall length, width, height, and turning radius.
• Account for Future Needs: Will your business grow? Will your cargo types change? It’s often better to have a little extra capacity than to be constantly constrained.
• Don’t Forget Driver Comfort & Skill: A larger truck requires more skill to maneuver. Ensure your drivers are comfortable and proficient with the chosen dimensions.

Common Mistakes to Avoid When Measuring Up

Even seasoned professionals can make oversights. Be vigilant against these common pitfalls:

• Ignoring Door Clearances: Assuming the interior cargo dimensions match the door opening dimensions is a common and costly error. Always measure both.
• Overestimating Payload: Forgetting to subtract the weight of the driver, fuel, and equipment from the GVWR to get the true payload.
• Forgetting About Road Regulations: Different states and municipalities have varying restrictions on truck length, width, and weight. Always check your route.
• Not Accounting for Maneuvering Space: A truck might fit through a gate, but can it turn once it’s inside? Always consider the turning radius.

Conclusion: Your Blueprint for Success on the Road

Understanding these 26 box truck dimensions is your blueprint for efficient, safe, and compliant operations. It’s an investment in knowledge that pays dividends in saved time, reduced costs, and enhanced safety. By meticulously considering each of these measurements, you transform a complex decision into a strategic advantage.

From the overall height that keeps you clear of overpasses to the payload capacity that ensures legal loads, every dimension tells a story about your truck’s capabilities and limitations. Take the time to measure twice, plan thoroughly, and hit the road with confidence. Your business, your cargo, and your drivers will thank you for it.
