Unveiling the Backbone: A Deep Dive into Suspension Parts Naming in Trucks

Unveiling the Backbone: A Deep Dive into Suspension Parts Naming in Trucks Lmctruck.Guidemechanic.com

As an expert in automotive mechanics and a professional blogger, I’ve spent countless hours under the chassis of various trucks, from light-duty pickups to heavy-duty haulers. One thing consistently stands out: the intricate dance of the suspension system. It’s the unsung hero that ensures your ride is smooth, your cargo is stable, and your journey is safe. Yet, for many truck owners and enthusiasts, the myriad of suspension parts can feel like a complex puzzle with an alien naming convention.

This comprehensive guide is designed to demystify the world of truck suspension. We’ll meticulously break down the naming, function, and importance of each critical component, transforming you from a novice to a knowledgeable connoisseur. Our ultimate goal is to equip you with the understanding necessary to make informed decisions about maintenance, repairs, and upgrades, ensuring your truck performs optimally for years to come.

Unveiling the Backbone: A Deep Dive into Suspension Parts Naming in Trucks

Why Understanding Truck Suspension is Non-Negotiable

Beyond just comfort, your truck’s suspension system plays a pivotal role in safety, handling, and overall vehicle longevity. A well-maintained suspension ensures proper tire contact with the road, leading to better traction and braking performance. Conversely, a failing suspension can compromise stability, increase wear on other components, and even lead to dangerous driving conditions.

Based on my experience, many drivers overlook their suspension until a noticeable problem arises. However, proactively understanding these components allows for early detection of issues, saving significant costs and potential hazards down the road. This knowledge isn’t just for mechanics; it’s vital for every truck owner who values reliability and safety.

The Foundation: Major Suspension Systems in Trucks

Before we dive into individual parts, it’s helpful to understand the primary types of suspension systems found in trucks. Each system uses a different approach to absorb shocks and support the vehicle’s weight, dictating which components are present and how they interact.

1. Leaf Spring Suspension

Predominantly found on the rear axles of pickups and heavy-duty trucks, leaf springs are robust and time-tested. They consist of several bowed steel leaves stacked on top of each other, designed to flex and absorb vertical forces. Their simplicity and durability make them ideal for carrying heavy loads.

2. Coil Spring Suspension

More common in the front of light-duty trucks and SUVs, coil springs offer a more comfortable ride. They are essentially a coil of steel wire, acting as a compression spring to absorb bumps. They often work in conjunction with shock absorbers or struts to dampen oscillations.

3. Air Suspension System

Gaining popularity in modern trucks, air suspension replaces traditional steel springs with air springs (also known as air bags). These systems use an onboard air compressor to inflate or deflate the air springs, allowing for adjustable ride height and stiffness. This provides superior ride comfort, load leveling capabilities, and enhanced towing stability.

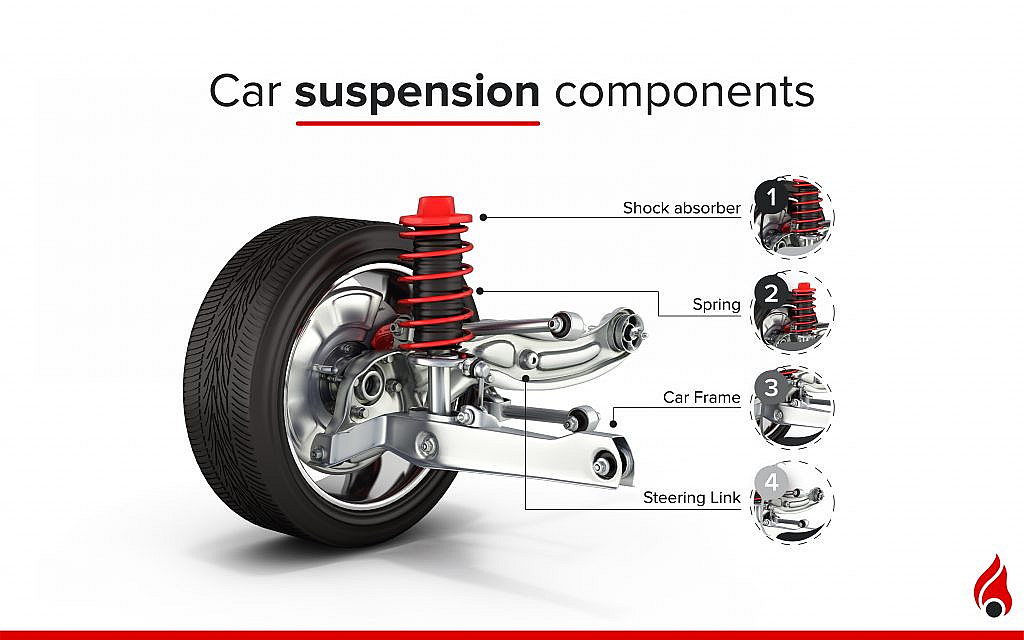

Decoding the Components: A Comprehensive Naming Guide

Now, let’s get into the nitty-gritty. We’ll break down the essential suspension parts, explaining their names and critical functions in detail. This section is your ultimate glossary for truck suspension terminology.

1. Springs: The Weight Bearers and Shock Absorbers

Springs are the primary components responsible for supporting the truck’s weight and absorbing road imperfections. Without them, every bump would be a jarring experience.

• Leaf Springs: These are multi-layered metal strips, usually bowed, bolted together at the center and attached to the axle and chassis. When a wheel hits a bump, the leaves flex, dissipating the energy. Heavy-duty trucks often feature more leaves or thicker leaves for increased load capacity.

  • Based on my experience, a common issue with leaf springs is sagging over time, especially in trucks that consistently carry heavy loads. This reduces ride height and can affect handling.

• Coil Springs: As mentioned, these are helical-wound metal springs that compress and rebound. They offer a more progressive spring rate compared to leaf springs, contributing to a smoother ride quality. You’ll typically find them at the front of many light-duty trucks and sometimes in the rear for specific setups.

• Torsion Bars: Less common in modern light-duty trucks but still found in some older models and specific heavy-duty applications, torsion bars are long, straight metal bars. One end is anchored to the frame, and the other to a control arm. When the wheel moves up, it twists the bar, which then resists the twisting force, acting as a spring.

• Air Springs (Air Bags): These are reinforced rubber bladders filled with compressed air. They replace traditional coil or leaf springs, offering adjustable load support and ride height. They are integral to air suspension systems and provide an unparalleled level of ride comfort and adaptability.

  • Pro tip from us: Regular inspection of air springs for cracks or leaks is crucial, as even small air leaks can compromise the entire system’s performance.

2. Dampers: Controlling the Oscillations

While springs absorb the initial impact, they would continue to bounce without a dampening mechanism. This is where shock absorbers and struts come into play, converting kinetic energy into heat.

• Shock Absorbers (Shocks): These hydraulic or gas-filled cylinders are positioned between the frame and the axle/suspension component. Their job is to dampen the oscillations of the springs, preventing excessive bouncing after hitting a bump. They contain pistons that move through fluid, creating resistance.

  • Common mistakes to avoid are driving with worn-out shocks. This significantly reduces control, increases braking distances, and accelerates wear on tires and other suspension components.

• Struts (MacPherson Struts): A strut combines the functions of a shock absorber and a structural suspension component, often replacing an upper control arm. It houses the coil spring and acts as a pivotal mounting point for the steering knuckle. Struts are a compact design, commonly found in the front suspension of many light-duty trucks and SUVs.

  • If you’re curious about the difference between struts and shocks, we’ve got you covered in .

3. Control Arms (A-Arms/Wishbones): Guiding Wheel Movement

Control arms are crucial links that connect the wheel hub or steering knuckle to the truck’s frame, allowing the wheels to move up and down while maintaining proper alignment.

• Upper Control Arm: Connects the top of the steering knuckle to the frame.

• Lower Control Arm: Connects the bottom of the steering knuckle to the frame.

• Both work in tandem to control the vertical and horizontal movement of the wheel. They are typically found in independent front suspension (IFS) systems.

  • From years of working with truck suspensions, I’ve seen how worn control arm bushings can lead to clunking noises and vague steering.

• Trailing Arms: These are typically found in the rear suspension, especially with coil spring or air suspension setups. They connect the axle to the chassis, controlling the fore-aft movement of the wheel.

• Panhard Rod (Track Bar): This is a lateral link that connects one side of the axle to the opposite side of the frame. Its primary function is to prevent lateral (side-to-side) movement of the axle, especially in solid axle setups.

4. Bushings: The Silent Isolators

Bushings are small but mighty components, typically made of rubber, polyurethane, or other synthetic materials. They are inserted into joints where suspension components connect (e.g., control arm to frame, sway bar to frame).

• Their main purpose is to absorb vibrations, reduce noise, and provide a cushion between metal parts. They allow for controlled movement while preventing metal-on-metal contact.
  • A common issue I’ve observed with worn bushings is excessive play in the suspension, leading to clunking sounds and poor handling.

5. Ball Joints: Pivoting Connections

Ball joints are spherical bearings that allow for rotational movement between two components. In truck suspension, they typically connect the control arms to the steering knuckle, permitting the wheels to steer and articulate vertically.

• They are critical for maintaining proper steering geometry and ensuring smooth, responsive handling.
  • Based on my experience, a failing ball joint can manifest as a clunking noise when turning or going over bumps, and can severely compromise steering control.

6. Tie Rods and Steering Components (Front Suspension Interaction)

While primarily steering components, tie rods are intrinsically linked to the front suspension’s performance and alignment.

• Tie Rods (Inner and Outer): These connect the steering rack (or gearbox) to the steering knuckle, allowing the wheels to turn in response to steering wheel input. The outer tie rod end, in particular, is a pivot point that works in conjunction with ball joints.
  • Any play in tie rod ends will directly affect steering precision and can cause uneven tire wear.

7. Sway Bars (Anti-Roll Bars): Reducing Body Roll

Also known as anti-roll bars, sway bars are U-shaped metal rods that connect the left and right sides of the suspension, typically across an axle.

• Their purpose is to reduce body roll during cornering. When one side of the suspension compresses (e.g., in a turn), the sway bar twists, transferring force to the other side, thereby keeping the truck flatter.
  • Pro tips from us: Upgrading to a thicker sway bar can significantly improve handling and reduce body roll, especially in trucks with a high center of gravity.

8. Mounts & Brackets: The Anchors

These are the structural components that secure various suspension parts to the truck’s frame or axle. They include:

• Spring Perches: Platforms on the axle or control arm where springs rest.
• Shock Mounts: Brackets that attach the shock absorbers to the frame and axle.
• Control Arm Mounts: Connection points on the frame for control arms.
  • The integrity of these mounts is paramount. Rust or damage here can lead to catastrophic suspension failure.

9. U-Bolts: Securing Leaf Springs

These are U-shaped bolts, often found in sets of four, that clamp the leaf spring pack and the axle together. They are absolutely critical for holding the rear suspension components in place.

• Based on my experience, it’s essential to ensure U-bolts are torqued correctly. Loose U-bolts can lead to axle wrap, premature wear, and even axle displacement.

10. Bump Stops: Preventing Bottoming Out

Bump stops are rubber or polyurethane blocks strategically placed to cushion the suspension when it reaches its maximum compression.

• They prevent metal-on-metal contact, protecting the springs, shocks, and frame from damage during severe impacts or when carrying extremely heavy loads.
  • Over time, bump stops can degrade, crack, or even fall off, leading to a harsh ride when the suspension bottoms out.

11. Steering Knuckle (Spindle): The Pivotal Hub

The steering knuckle is a crucial component in independent front suspensions. It’s the part that connects the wheel hub, brake caliper, and wheel bearing to the suspension components like control arms and tie rods. It pivots to allow the wheel to turn.

• While not a spring or a damper, its interaction with ball joints and tie rods makes it central to the front suspension’s operation.

The Symphony of Components: How They Work Together

It’s easy to view these parts in isolation, but the magic of a truck’s suspension lies in their coordinated effort. The springs absorb the initial impact, while the shocks immediately work to control the rebound. Control arms guide the wheel’s movement, maintaining alignment, while bushings dampen vibrations at every pivot point. The sway bar keeps the truck level during turns, and ball joints allow for precise steering input.

Every single component plays a vital role in this complex dance. A failure in one part can quickly cascade, affecting the performance and longevity of others. This interconnectedness underscores the importance of a holistic approach to suspension maintenance.

Common Signs of Suspension Wear and Tear

Being attuned to your truck’s behavior can save you significant repair costs and prevent dangerous situations. Here are some tell-tale signs of a worn-out suspension:

• Bumpy or Harsh Ride: If you feel every bump in the road, your shocks or springs might be worn.
• Excessive Bouncing After Bumps: Your truck continues to bounce multiple times after hitting a speed bump, indicating failing shock absorbers.
• Vehicle Pulling to One Side: Can be a sign of alignment issues caused by worn control arm bushings, ball joints, or tie rods.
• Nose Diving During Braking or Squatting During Acceleration: Worn shocks or springs are often the culprits.
• Uneven Tire Wear: Scalloping or cupping patterns on your tires often point to suspension issues.
• Clunking, Squeaking, or Groaning Noises: These sounds, especially over bumps or during turns, usually indicate worn bushings, ball joints, or loose components.
• Visible Leaks on Shock Absorbers: A clear sign that your shocks are failing and need replacement.
• Sagging or Uneven Ride Height: Can indicate a broken spring, worn leaf spring pack, or a failing air spring.

Pro Tips for Suspension Maintenance and Longevity

Extending the life of your truck’s suspension system isn’t just about repairs; it’s about proactive care.

1. Regular Inspections: Have your suspension components visually inspected during routine oil changes or tire rotations. Look for rust, cracks, leaks, and excessive play.
2. Maintain Proper Tire Pressure: Incorrect tire pressure can negatively impact ride quality and accelerate suspension wear.
3. Avoid Overloading: Consistently carrying loads beyond your truck’s rated capacity will prematurely wear out springs, shocks, and bushings.
4. Drive Mindfully: Avoid hitting potholes or speed bumps at high speeds. Gentle driving extends the life of all components.
5. Address Issues Promptly: Don’t ignore those strange noises or changes in ride quality. Early intervention can prevent minor problems from becoming major, expensive repairs.
   • For a deeper dive into choosing the right suspension upgrades, check out our article on .

Common Mistakes to Avoid

In my years in the industry, I’ve seen a few common pitfalls that truck owners fall into when it comes to their suspension.

• Ignoring Alignment: After replacing suspension components, especially steering-related ones, a wheel alignment is crucial. Failing to do so can lead to poor handling and rapid tire wear.
• Replacing Only One Side: If a shock absorber or coil spring fails, it’s generally recommended to replace them in pairs on the same axle. This ensures balanced performance and prevents uneven wear.
• Using Incorrect Parts: Always use parts that are specified for your truck’s make, model, and year. Generic or incorrect parts can lead to fitment issues, premature failure, and compromise safety.
• DIYing Without Proper Tools/Knowledge: While some tasks seem simple, suspension work often requires specialized tools and a solid understanding of torque specifications. Improper installation can be dangerous. When in doubt, consult a professional.

Conclusion: Empowering Your Trucking Journey

Understanding the naming and function of truck suspension parts is more than just technical knowledge; it’s an investment in your safety, your truck’s longevity, and your peace of mind. From the robust leaf springs carrying heavy loads to the nuanced dampening of shock absorbers, each component works tirelessly to provide a smooth, controlled, and safe ride.

By internalizing this comprehensive guide, you are now equipped to speak the language of truck suspension, identify potential issues, and make informed decisions about your vehicle’s care. Remember, a well-understood and well-maintained suspension isn’t just a luxury—it’s the backbone of every reliable and enjoyable trucking journey. Drive confidently, knowing your truck’s foundation is solid.

For further reading and official specifications on truck components, consider consulting resources from reputable organizations like SAE International, which sets many of the standards in the automotive industry. .
