Unveiling the Anatomy of a Truck: A Deep Dive into Every Essential Body Part

Unveiling the Anatomy of a Truck: A Deep Dive into Every Essential Body Part Lmctruck.Guidemechanic.com

Trucks are the backbone of modern commerce and personal utility, moving everything from construction materials to groceries, and navigating terrains from highways to rugged trails. Yet, beneath their utilitarian facade lies a complex marvel of engineering. Understanding the parts of a truck body isn’t just for mechanics; it’s crucial for owners, operators, and anyone who relies on these powerful machines.

As an expert blogger and professional SEO content writer, I’ve spent years dissecting the intricacies of automotive design. Based on my experience, a deep comprehension of a truck’s structure empowers you to make informed decisions about maintenance, upgrades, and even your next purchase. This article will serve as your ultimate guide, meticulously exploring every vital component that makes up a truck’s robust body, from the foundational chassis to the specialized cargo area. We’re aiming for a super comprehensive journey, ensuring you gain real value and a profound understanding of these workhorses.

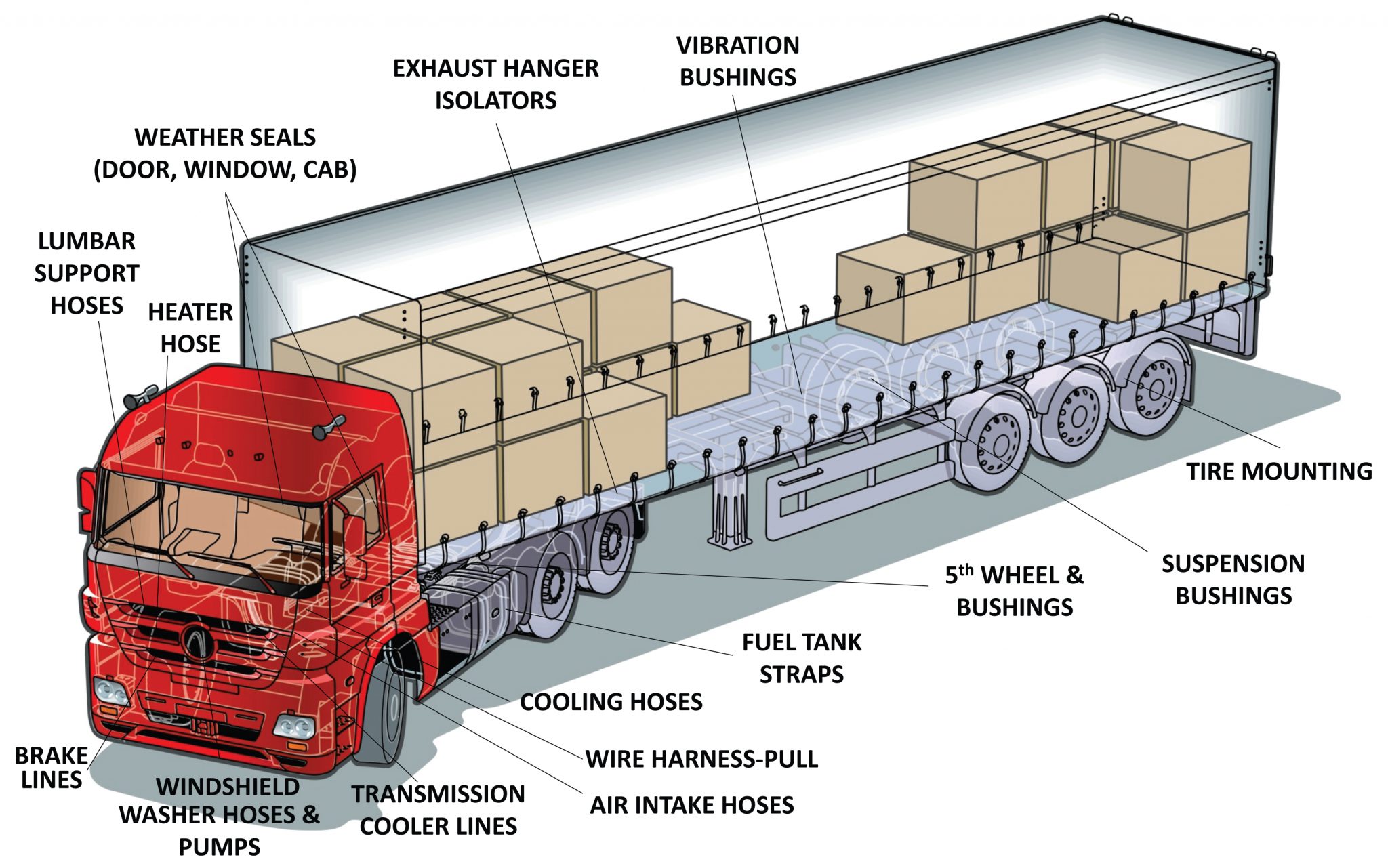

Unveiling the Anatomy of a Truck: A Deep Dive into Every Essential Body Part

The Unseen Core: Chassis and Frame – The Truck’s Skeleton

Every truck, whether a nimble pickup or a massive semi-trailer, starts with its skeletal system: the chassis and frame. This is the bedrock upon which all other components are mounted, dictating the vehicle’s strength, load-carrying capacity, and overall integrity.

The frame typically consists of two long, parallel frame rails running the length of the truck. These are usually made from high-strength steel alloys, designed to withstand immense torsional and bending forces. Connecting these rails are crossmembers, which provide lateral rigidity and prevent the frame from twisting under stress.

Pro tips from us: The design and material of the frame significantly impact a truck’s durability and lifespan. A robust, well-maintained frame is paramount for safety and performance, especially when hauling heavy loads. Regular inspections for rust, cracks, or bends are non-negotiable.

The Power Enclosure: Engine Compartment and Hood

Nestled at the front of the truck, the engine compartment is more than just a space for the engine. It’s a meticulously designed area that protects vital components while allowing for crucial airflow and maintenance access.

The hood itself is a key part of the body, serving as the protective cover for the engine and associated systems. Modern hoods are engineered not just for access but also for aerodynamics, pedestrian safety, and sometimes even structural rigidity in the event of a collision. Materials range from steel to aluminum, and increasingly, composite materials to reduce weight and improve fuel efficiency.

Within this compartment, you’ll find the engine mounted securely, along with the radiator and its fan shroud ensuring optimal cooling. The air intake system, battery, and various fluid reservoirs are also strategically placed. Common mistakes to avoid are neglecting regular cleaning of this area, as accumulated dirt and debris can hinder cooling and accelerate corrosion.

The Command Center: The Truck Cab

The cab is the nerve center of the truck, the space where the driver operates and often spends countless hours. Its design is a critical balance of safety, comfort, visibility, and functionality.

Exterior Cab Components:

• Doors: These are engineered for secure closure, impact protection, and ease of entry/exit. They house complex mechanisms for locks, windows, and sometimes integrated side-impact beams.
• Windows and Windshield: Providing essential visibility, these are made from laminated or tempered safety glass. The windshield, in particular, is a structural component, contributing to the cab’s rigidity and crucial for airbag deployment in many modern designs.
• Mirrors: Side mirrors (and sometimes additional convex mirrors) are vital for rear and side visibility, especially for larger trucks with blind spots. Many are now heated and electronically adjustable.
• Roof: The cab roof provides overhead protection and contributes to the overall structural integrity. For some heavy-duty trucks, it might also host aerodynamic fairings or marker lights.
• Lighting: Beyond the main headlights and taillights, the cab often features marker lights and clearance lights to indicate the truck’s width and presence, particularly at night or in adverse weather.

Interior Cab Components:

• Dashboard and Controls: This ergonomic hub houses the instrument cluster, infotainment system, climate controls, and various switches. Modern dashboards are designed to minimize driver distraction while keeping essential information readily available.
• Steering Wheel: Beyond directional control, many steering wheels now integrate controls for audio, cruise control, and even phone calls, enhancing driver focus.
• Seats: Truck seats are engineered for long-haul comfort and support. Air-ride seats, lumbar support, and multiple adjustments are common, crucial for mitigating driver fatigue and promoting good posture.
• HVAC System: Heating, ventilation, and air conditioning are essential for driver comfort in all climates. A well-functioning HVAC system improves driver alertness and overall well-being.
• Safety Features: Modern cabs integrate advanced safety features such as multiple airbags (where applicable), advanced seatbelt systems, and increasingly, Advanced Driver-Assistance Systems (ADAS) like lane-keeping assist and collision mitigation, which rely on sensors integrated into the body.

For a deeper dive into the technological advancements improving truck driver safety and comfort, you might find our article on "Innovations in Commercial Truck Cab Design" particularly insightful. (Internal Link)

The Connecting Elements: Suspension System

While not strictly "body" in the traditional sense, the suspension system is inextricably linked to the chassis and significantly impacts how the body performs. It bridges the gap between the wheels and the frame, absorbing road imperfections and maintaining tire contact.

Key components include springs (leaf springs, coil springs, or air springs), which support the vehicle’s weight and absorb vertical motion. Shock absorbers (or dampers) control the oscillation of the springs, preventing excessive bouncing. Control arms or links connect the wheel hub to the frame, allowing for precise wheel movement while maintaining alignment.

The suspension system is paramount for ride comfort, vehicle handling, and crucially, for protecting the cargo and the truck’s structural components from excessive jarring. Pro tip: Neglecting suspension maintenance can lead to premature wear on tires, increased fuel consumption, and even structural fatigue in the truck body over time.

The Ground Contact: Wheels, Tires, and Braking Integration

The points where the truck meets the road are critical. The wheels and tires, while often considered separate, are integral to the truck’s overall body and performance.

Rims (Wheels): These provide the structural base for the tires. Made from steel or aluminum, they must withstand immense forces from acceleration, braking, and road impacts. Aluminum wheels are increasingly popular for their weight savings and improved heat dissipation.

Tires: The right tires are crucial for traction, load capacity, and fuel efficiency. They come in various types (all-season, highway, mud-terrain, winter) with specific tread patterns and load ratings. Maintaining correct tire pressure is one of the simplest yet most impactful maintenance tasks you can perform.

Integrated with the wheels is the braking system, consisting of discs or drums, calipers, pads or shoes, and hydraulic lines. Modern trucks often feature Anti-lock Braking Systems (ABS), which prevent wheel lock-up during hard braking, allowing the driver to maintain steering control. This system is crucial for safety, and its components are often mounted directly to the axle and wheel hub assemblies, which are connected to the main body structure.

The Load Bearer: The Cargo Area or Bed

This is where trucks earn their keep. The design and construction of the cargo area vary dramatically depending on the truck’s intended purpose.

Pickup Trucks:

• Truck Bed: Typically made of steel, aluminum, or composite materials, the bed is designed to haul various items. It includes the bed floor, side walls, and often integrated tie-down points for securing cargo.
• Tailgate: This hinged rear panel allows for easy loading and unloading. Modern tailgates often feature damping systems, power assists, and even integrated steps or work surfaces.
• Bed Liner: Many trucks feature drop-in or spray-on bed liners to protect the bed from scratches, dents, and corrosion, extending its lifespan.

Commercial and Heavy-Duty Trucks:

• Flatbeds: A simple, open platform for oversized or irregularly shaped cargo, often with removable side stakes. The flatbed itself is a robust structural component.
• Box Trucks (Dry Vans): Enclosed cargo areas with rigid walls, a roof, and a sturdy floor. The rear often features roll-up doors or swing-out doors for access. These bodies are typically built separately from the chassis and then mounted.
• Dump Beds: Heavy-duty, reinforced beds designed to tilt and unload loose materials. They feature thick steel walls, a robust floor, and powerful hydraulic systems.
• Tank Bodies: Specialized sealed containers for liquids or gases, requiring precise engineering for safety and stability.
• Specialized Bodies: This category includes everything from refuse trucks with compaction mechanisms to tow trucks with winches and booms, and utility trucks with service bodies and integrated tool compartments. Each of these bodies is a complex structure designed for a very specific function, often incorporating its own frame and structural supports that attach to the truck’s main chassis.

The materials and construction of the cargo area are paramount for durability, security, and payload capacity. Based on my experience, proper load distribution and securing cargo are critical for safety and preventing damage to the truck body.

Visibility, Aerodynamics, and Accessories: Enhancing Functionality

Beyond the core structural components, many other parts contribute to a truck’s functionality, safety, and efficiency.

• Exterior Lighting: Beyond headlights and taillights, this includes fog lights for improved visibility in adverse conditions, turn signals for indicating direction, and brake lights to alert following vehicles. All are integrated into the body design.
• Running Boards/Side Steps: These provide easier access to the cab, especially for taller trucks. They are typically bolted to the frame or rocker panels.
• Brush Guards/Grille Guards: Often found on off-road or heavy-duty trucks, these provide additional protection to the front end, including the grille and headlights, from impacts.
• Mud Flaps: Essential for preventing rocks, mud, and water from being thrown up by the tires, protecting the truck itself and following vehicles.
• Aerodynamic Elements: For larger commercial trucks, fairings (side skirts, roof fairings, cab extenders) are integral body components designed to reduce aerodynamic drag, significantly improving fuel efficiency. These are carefully shaped and mounted to the truck’s cab and trailer.

Specialized Components and Advanced Integrations

Modern trucks are increasingly sophisticated, incorporating advanced systems that integrate deeply with the body structure.

• Power Take-Off (PTO) Systems: For trucks with specialized functions (like dump trucks, cement mixers, or utility vehicles), the PTO system taps into the engine’s power to operate external equipment. The pumps, reservoirs, and hydraulic lines for these systems are carefully routed and mounted within or alongside the truck’s body.
• Hydraulic Systems: Integral to many commercial truck bodies (dump beds, cranes, liftgates), these systems require robust mounting points and careful integration to ensure safety and efficiency.
• Telematics and Connectivity: Antennas, sensors, and cameras for telematics, GPS, and ADAS are subtly integrated into the truck’s exterior and interior body panels, providing crucial data and enhancing operational safety.

For a broader understanding of the regulatory landscape and safety standards that influence truck body design, the National Highway Traffic Safety Administration (NHTSA) website is an excellent external resource. https://www.nhtsa.gov/

Maintenance and Longevity: Pro Tips for Your Truck Body

Understanding the parts of a truck body is only half the battle; proper care ensures their longevity and your truck’s reliable performance.

• Corrosion Prevention: This is paramount, especially for trucks exposed to harsh weather or road salts. Regularly wash your truck, paying attention to hidden crevices, and consider applying rust-proofing treatments to the undercarriage and frame.
• Regular Inspections: Periodically inspect all visible body parts for dents, scratches, cracks, or loose fasteners. Address minor issues promptly before they escalate into costly repairs. This includes checking door hinges, tailgate mechanisms, and bed liners.
• Proper Loading: Always adhere to your truck’s payload capacity. Overloading puts undue stress on the frame, suspension, and cargo area, leading to premature wear and potential structural damage. Distribute loads evenly to maintain balance and stability.
• Impact of Body Design on Maintenance: Some body designs offer easier access to components for maintenance, while others might require more specialized tools or procedures. Familiarize yourself with your specific truck’s access points. Common mistakes to avoid include using harsh chemicals on painted surfaces or neglecting to lubricate moving parts like door hinges and tailgate latches.

Conclusion: A Foundation of Knowledge for the Road Ahead

From the robust chassis that forms its very backbone to the sophisticated electronics subtly integrated into its panels, every part of a truck body plays a vital role in its overall functionality, safety, and performance. We’ve journeyed through the unseen foundation, the driver’s command center, the load-bearing sections, and the crucial ancillary components that make these vehicles indispensable.

By understanding the intricate anatomy of a truck, you gain not just knowledge, but the power to make better decisions as an owner, operator, or enthusiast. This comprehensive insight into the parts of a truck body is designed to be a pillar of information, guiding you towards safer operation, smarter maintenance, and a deeper appreciation for these incredible machines. Keep this guide handy, share your experiences with us, and always drive informed!
