When it comes to tackling substantial moving projects, large-scale deliveries, or commercial hauling, the 26-foot box truck often emerges as the vehicle of choice. It strikes a crucial balance between considerable cargo capacity and manageable driveability, making it a staple in logistics and personal relocation alike. However, simply knowing it’s a "26-foot" truck isn’t enough. To truly leverage its potential, understanding the intricate details of its dimensions is absolutely essential.

As an expert blogger and professional in the logistics and moving industry, I’ve seen firsthand how a clear grasp of these measurements can prevent headaches, save money, and ensure a smooth operation. This comprehensive guide will meticulously unpack every dimension of the 26-foot box truck, offering insights, pro tips, and crucial advice to help you make informed decisions. Let’s dive deep into the world of these robust vehicles.

Unpacking the 26 Foot Box Truck: A Comprehensive Guide to Its Dimensions and Capabilities

Why the 26-Foot Box Truck Reigns Supreme for Many Needs

The 26-foot box truck holds a special place in the fleet of commercial vehicles, primarily due to its versatility and impressive capacity. It’s often the largest non-commercial driver’s license (CDL) required rental truck available in many jurisdictions, making it accessible to a broader range of users. This accessibility, combined with its substantial cargo volume, makes it an ideal solution for a multitude of tasks.

Based on my experience working with countless individuals and businesses, the 26-foot model is perfectly suited for moving a large 3-4 bedroom home, transporting a significant amount of business inventory, or handling event equipment. Its generous internal space allows for efficient loading of furniture, appliances, and numerous boxes, often consolidating what would otherwise require multiple trips with smaller vehicles. This efficiency translates directly into time and cost savings.

Core Dimensions: What You Absolutely Need to Know

Understanding the precise dimensions of a 26-foot box truck is paramount for safe operation, efficient loading, and navigating various environments. We’ll break these down into external and internal measurements, highlighting why each is critical.

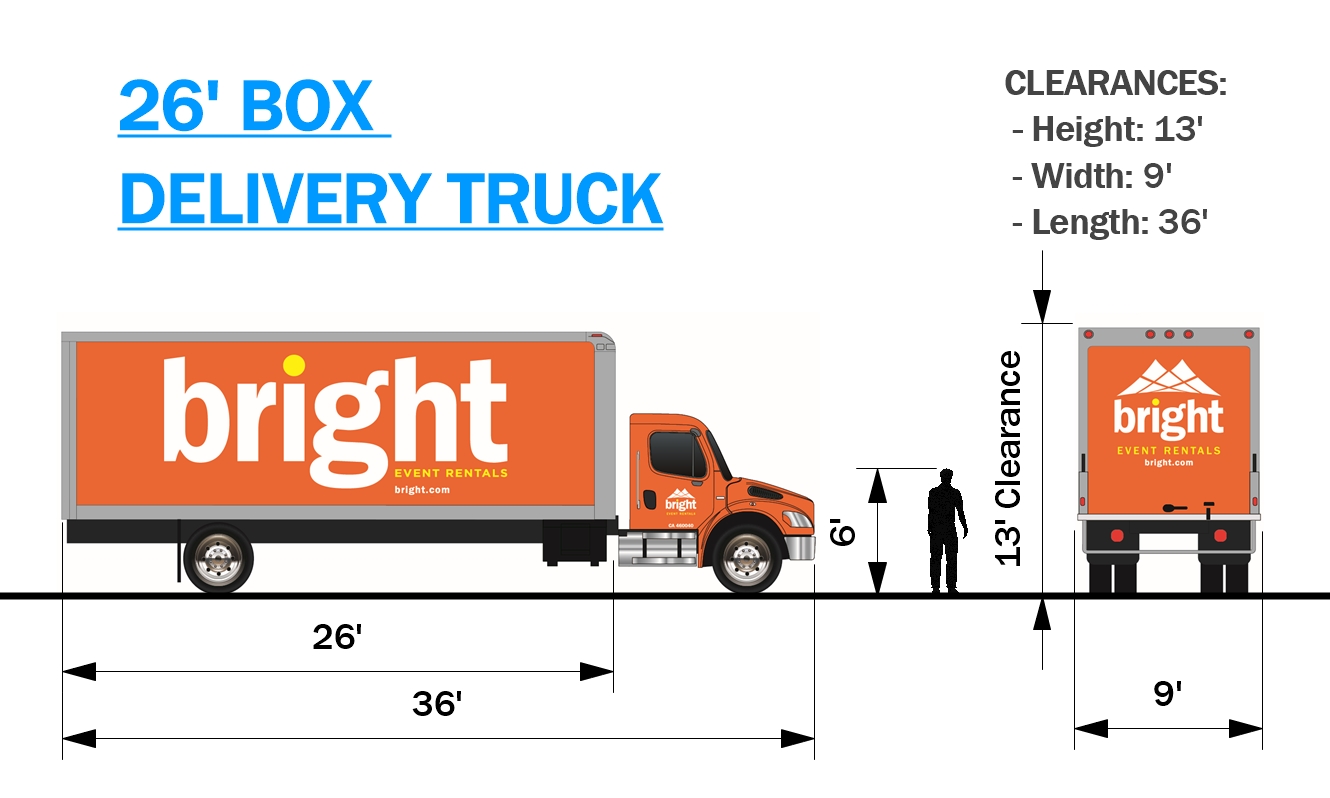

External Dimensions: The Overall Footprint

When we talk about a "26-foot box truck," it’s crucial to understand that the "26 feet" typically refers to the length of the cargo box itself. The overall length of the entire vehicle, from bumper to bumper, is often significantly longer. This distinction is vital for planning routes, parking, and maneuvering.

• Overall Length: Expect the truck’s total length to range from approximately 33 to 35 feet. This includes the cab, chassis, and the cargo box. For instance, a Ford E-450 or F-650 chassis with a 26-foot box will extend beyond that nominal box length. Always verify this specific measurement if you’re dealing with tight parking spaces or loading docks.
• Overall Width: The body of the truck is usually around 8 feet 6 inches (102 inches) wide. However, you must factor in the side mirrors. With mirrors extended, the overall width can easily reach 10 feet to 10 feet 6 inches. This extra width is a common pitfall for drivers unfamiliar with larger vehicles, especially when navigating narrow streets, drive-thrus, or construction zones.
• Overall Height: This is arguably the most critical external dimension. From the ground to the highest point of the truck (often the top of the cargo box or an air deflector), a 26-foot box truck typically measures between 12 feet and 13 feet 6 inches. This measurement is non-negotiable when encountering bridges, tunnels, parking garage entrances, or overhanging obstacles. Always pay attention to clearance signs, as misjudging this can lead to catastrophic damage and serious safety risks.

Pro tips from us: Always carry a sticky note or small card in the cab with the exact overall height written on it. It’s a simple but effective way to prevent costly mistakes, especially when you’re driving in unfamiliar territory.

Internal Dimensions: Your Usable Cargo Space

The internal dimensions dictate how much you can actually fit inside the truck. While the external measurements are for navigation, these are for logistics.

• Cargo Box Length: This is where the "26 feet" comes into play. The usable interior length, from the bulkhead behind the cab to the rear door, is generally 26 feet (312 inches). This generous length allows for packing multiple rows of items, including long furniture pieces.
• Cargo Box Width: Inside, from wall to wall, the width is typically around 8 feet (96 inches). However, you need to consider the wheel wells, which protrude into this space. Above the wheel wells, the width remains consistent, but at floor level, the usable width between the wells can narrow to about 4 feet to 6 feet depending on the specific chassis and box design. This is a crucial detail for loading wide items or pallets.
• Cargo Box Height: The interior height, from the floor to the ceiling of the cargo area, usually ranges from 8 feet to 8 feet 6 inches (96 to 102 inches). This ample vertical space is perfect for stacking boxes and upright furniture. When planning, always account for the height of items and the need to secure them properly to prevent shifting during transit.

Common mistakes to avoid are assuming the stated "26 feet" refers to the entire truck or that the internal width is uniform from floor to ceiling. Always visualize your cargo in relation to the wheel wells and the true usable length.

Door Opening Dimensions: Getting Your Items In

Even with a massive cargo area, if your items can’t fit through the door, it’s all for naught. The rear door dimensions are crucial, especially for large furniture or equipment.

• Rear Door Opening Width: This measurement is typically around 7 feet 6 inches (90 inches). While the interior might be 8 feet wide, the door frame itself slightly reduces the usable opening.
• Rear Door Opening Height: The height of the rear door opening is usually around 7 feet 6 inches to 8 feet (90-96 inches). This is a critical measurement for tall items like refrigerators, wardrobes, or large crates. Always measure your tallest and widest items to ensure they will clear the door opening without forcing.

Understanding Weight Capacities: Crucial for Safety and Legality

Beyond physical dimensions, the weight a 26-foot box truck can safely and legally carry is a fundamental aspect of its capability. Overloading is not only dangerous but can also lead to hefty fines and mechanical issues.

Gross Vehicle Weight Rating (GVWR)

The GVWR is the maximum operating weight of the truck as specified by the manufacturer, including the truck itself, fuel, driver, passengers, and all cargo. For most 26-foot box trucks, the GVWR typically falls between 25,500 lbs and 26,000 lbs. This range is significant because it often keeps the truck just under the 26,001 lbs threshold that would require a commercial driver’s license (CDL) in the United States.

It’s important to remember that this is a maximum limit. Exceeding the GVWR can compromise braking performance, steering control, and structural integrity of the vehicle.

Payload Capacity

Payload capacity is the actual amount of cargo weight you can carry. It’s calculated by subtracting the truck’s curb weight (the weight of the empty truck with a full tank of fuel, but without driver or cargo) from its GVWR.

• Curb Weight: The curb weight of a 26-foot box truck can vary based on the manufacturer, chassis, engine, and any built-in features (like a lift gate). It usually ranges from 14,000 lbs to 17,000 lbs.
• Calculating Payload: If a truck has a GVWR of 26,000 lbs and a curb weight of 15,000 lbs, its payload capacity would be 11,000 lbs. This is a substantial amount of weight, equivalent to roughly 5.5 tons. However, it’s crucial to be aware that adding a driver, passengers, or extra equipment like moving blankets will further reduce the available payload for your actual cargo.

Pro tips from us: Always get your truck weighed at a certified weigh station, especially if you suspect you’re close to the limit. This small step can save you from potential accidents, fines, and wear and tear on the vehicle. Many truck stops offer this service for a nominal fee.

Additional Key Specifications & Features Affecting Dimensions/Usability

Beyond the basic length, width, height, and weight, several other specifications and features play a significant role in how you use and perceive the dimensions of a 26-foot box truck.

Fuel Tank Capacity

While not a direct dimension of the cargo area, fuel tank capacity impacts your journey planning. Most 26-foot box trucks have fuel tanks ranging from 30 to 50 gallons. Knowing this, along with the average miles per gallon (which can be surprisingly low for a loaded truck, often 6-10 MPG), helps you plan fuel stops, especially on long-haul trips. Running out of fuel in a large truck is an avoidable hassle.

Turning Radius

Maneuverability is a key concern for large vehicles. A 26-foot box truck, despite its size, often has a surprisingly decent turning radius compared to tractor-trailers, but it’s still much larger than a passenger car. The turning radius can range from 25 to 30 feet, depending on the wheelbase and steering configuration. This impacts how easily you can navigate tight corners, residential cul-de-sacs, or crowded loading docks. Always scout your route beforehand if you anticipate challenging turns.

Ramp and Lift Gate Dimensions & Capacity

Many 26-foot box trucks come equipped with either a pull-out ramp or a lift gate, significantly easing the loading and unloading process.

• Ramps: Typically, a pull-out ramp will be around 12 to 15 feet long and 2 to 3 feet wide. They usually have a weight capacity that matches or exceeds the truck’s payload. The incline of the ramp is a factor – a longer ramp provides a gentler slope.
• Lift Gates: These mechanical platforms are invaluable for heavy items.
  • Platform Dimensions: Lift gate platforms usually measure around 6 to 8 feet wide and 3 to 5 feet deep.
  • Weight Capacity: Most rental or commercial 26-foot box trucks feature lift gates with a capacity of 2,000 lbs to 3,000 lbs. This capacity is critical; never exceed it, as it can lead to equipment failure or serious injury.
  • Types: Common types include "tuck-under" (folds and stores under the truck bed) and "rail" (moves vertically along rails at the rear). Each has slight operational differences.

Rear Roll-Up Door vs. Swing Doors

The type of rear door affects both the usable opening and how you load.

• Roll-Up Doors: These are the most common on box trucks. They roll up into a compartment above the door opening. While convenient, the roll-up mechanism itself can slightly reduce the effective height of the door opening compared to the internal cargo height. They are ideal when space behind the truck is limited, as they don’t swing out.
• Swing Doors: Less common on standard 26-foot box trucks, but found on some specialized models. They open outwards like barn doors. These offer a full, unobstructed door opening but require significant clear space behind the truck to operate.

Interior Features

Features like tie-downs and E-track systems are essential for maximizing the utility of the internal dimensions. Tie-downs are typically spaced along the walls, allowing you to secure cargo using straps or ropes. E-track systems, often mounted on the walls or floor, provide a versatile grid for attaching specialized E-track straps, shoring beams, and cargo bars, ensuring items remain stable and don’t shift during transit. Understanding how to use these systems effectively is key to utilizing the truck’s space safely.

Factors Influencing Actual Dimensions (Variations)

It’s crucial to understand that while general dimensions are provided, actual measurements can vary. No two 26-foot box trucks are absolutely identical.

• Manufacturer Differences: Leading manufacturers like Ford, Isuzu, Hino, Freightliner, and GMC build their chassis differently. Body builders then install the box, leading to slight variations in external and internal measurements. Even within the same manufacturer, different models or years can have minor discrepancies.
• Customizations/Body Builders: Specialized applications, such as refrigerated (reefer) units, require thicker insulated walls, which can slightly reduce internal cargo width and height. Other custom builds for specific industries might also alter standard dimensions.
• Leasing Company Specifics: Major rental companies like Ryder, U-Haul, and Penske often have their own specifications or preferred manufacturers. While they aim for consistency, slight variations can exist across their fleets. Always check the specific truck you intend to rent or purchase.

Based on my experience, always double-check the actual dimensions of the specific truck you’re considering. Don’t rely solely on generalized figures, especially if you have very precise requirements for cargo fit or clearance. A quick measure with a tape measure can save a lot of trouble.

Practical Applications: How to Use These Dimensions Effectively

Knowing the numbers is one thing; applying them effectively is another. Here’s how these dimensions become powerful tools in your planning.

Planning a Move

For personal or residential moves, the 26-foot box truck is often the largest option. You can calculate the cubic feet of your cargo by multiplying the internal length, width, and height. A typical 26-foot box truck offers approximately 1,600 to 1,700 cubic feet of usable space. This volume is usually sufficient for a 3-4 bedroom house.

When planning, measure your largest furniture pieces—sofas, refrigerators, king-size beds, dressers. Ensure they can fit through the rear door opening and can be maneuvered inside the cargo box, especially around wheel wells. For more detailed tips on maximizing space, you might find our guide on How to Pack a Box Truck Efficiently (internal link placeholder) particularly useful.

Commercial Deliveries

For businesses, understanding these dimensions is critical for logistics. Palletized cargo, for example, is usually 48×40 inches. Knowing the internal width and length helps determine how many pallets can fit (often 10-12 standard pallets). The internal height is crucial for stacking pallets. Dock height compatibility is also key; most loading docks are between 48 and 52 inches high, and the bed height of a 26-foot box truck typically aligns well with this range.

Navigating Restrictions

The overall height of your truck is paramount for avoiding low bridges, tunnels, and parking garages. Always check signs. Many cities also have weight restrictions on certain roads or bridges, so understanding your GVWR and actual loaded weight is vital. Residential street access can be challenging due to narrow roads, parked cars, and low-hanging tree branches. Always plan your route carefully, especially in unfamiliar areas.

Common Mistakes and How to Avoid Them

Even experienced drivers can make mistakes, but many are easily preventable with proper awareness.

• Underestimating Overall Height: The most common and costly mistake. Always know your truck’s exact height and always heed clearance signs. If in doubt, find an alternative route.
• Overlooking Mirror Width: Forgetting the mirrors extend significantly beyond the body width can lead to scraped paint, broken mirrors, or even collisions in tight spaces.
• Ignoring Payload Capacity: Overloading jeopardizes safety, damages the truck, and can result in severe fines. Never guess; always estimate or weigh your cargo.
• Not Measuring Door Openings: Just because something fits inside the truck doesn’t mean it will fit through the door. Always measure your largest items against the door frame.
• Assuming All 26-Foot Trucks Are Identical: As discussed, variations exist. Verify the specific dimensions of the truck you are using.

These common mistakes to avoid are often a result of complacency or lack of preparation. A few minutes of planning and verification can save hours of trouble and thousands of dollars in damages.

Tips for Renting or Buying a 26-Foot Box Truck

Whether you’re a one-time renter or a business looking to expand its fleet, these tips will guide your decision-making.

• Always Verify Exact Dimensions: Before signing any rental agreement or purchase order, ask for the specific dimensions, including external height with mirrors, internal cargo space, and door opening measurements. Don’t hesitate to bring a tape measure yourself.
• Consider Your Specific Needs: What kind of cargo will you be hauling? How far will you be driving? Will you encounter steep inclines or tight urban environments? These factors influence the importance of payload capacity, engine power, and turning radius.
• Check for Additional Features: A lift gate is a game-changer for heavy items. An E-track system is invaluable for securing diverse cargo. Ensure the truck has the features you need to operate safely and efficiently.
• Research Rental Company Policies: Understand fuel policies, mileage charges, and insurance options. If buying, consider maintenance history and warranty.

For more information on commercial truck regulations and safety, you can always refer to trusted external sources like the Federal Motor Carrier Safety Administration (FMCSA) (external link placeholder). Their resources provide invaluable guidance on operating commercial vehicles.

Conclusion: Master the Dimensions, Master the Road

The 26-foot box truck is a powerful tool for moving and logistics, offering substantial capacity and versatility. However, its true potential is only unlocked when you have a thorough understanding of its dimensions, weight capacities, and specific features. From external height clearances to internal cargo width around wheel wells, every measurement plays a critical role in safe operation and efficient planning.

By internalizing the detailed information provided in this guide, you equip yourself with the knowledge to avoid common pitfalls, optimize your loading strategies, and navigate with confidence. Remember, accurate measurements and meticulous planning are the cornerstones of a successful journey, whether you’re moving a home or making commercial deliveries. Drive smart, measure carefully, and conquer your hauling challenges with the mighty 26-foot box truck.
