In the dynamic world of logistics and freight, every inch counts. While the external appearance of a truck might be imposing, it’s the hidden world within its walls – the truck internal dimensions – that truly dictates its capabilities and your shipping success. Understanding these critical measurements isn’t just about fitting your cargo; it’s about optimizing costs, ensuring safety, and streamlining your entire supply chain.

As an expert blogger and professional SEO content writer specializing in logistics, I’ve seen firsthand how a meticulous grasp of internal truck dimensions can transform operations. This comprehensive guide will delve deep into the nuances of these measurements, providing you with the essential knowledge to make informed decisions, avoid costly errors, and elevate your freight planning to an art form. Get ready to uncover the secrets to maximizing every cubic foot!

Unlocking Efficiency: The Definitive Guide to Truck Internal Dimensions for Flawless Logistics

Why Truck Internal Dimensions Matter: Beyond Just Numbers

The dimensions inside a truck are far more than mere figures on a spec sheet. They represent the canvas upon which your entire shipping strategy is painted. Overlooking their significance can lead to a cascade of problems, from wasted space and higher costs to damaged goods and delayed deliveries.

Based on my extensive experience in the field, I can confidently say that a thorough understanding of these internal spaces is the bedrock of efficient logistics. It impacts everything from the initial quote to the final delivery, directly influencing your bottom line and your reputation.

Cost Efficiency: The Volumetric Weight Equation

One of the most immediate impacts of understanding truck internal dimensions is on your shipping costs. Carriers often charge based on either the actual weight of your cargo or its volumetric (or dimensional) weight, whichever is greater. If your goods are bulky but light, their volume will be the determining factor.

Knowing the exact internal dimensions of various truck types allows you to calculate volumetric weight accurately. This insight empowers you to choose the most appropriate vehicle, prevent paying for empty space, and avoid unexpected surcharges. It’s a direct path to significant savings.

Safety and Compliance: Preventing Hazards on the Road

Proper loading, which is intrinsically linked to internal dimensions, is paramount for road safety. Overloading a truck, or improperly distributing weight within its cargo capacity, can lead to instability, tire blowouts, and even catastrophic accidents. Each truck has a maximum payload capacity, which must be respected.

Furthermore, cargo must be secured properly to prevent shifting during transit. Understanding the internal layout helps you plan for effective tie-downs and bracing, ensuring that your goods arrive safely and that the truck remains stable throughout its journey. Compliance with weight and safety regulations is non-negotiable.

Logistics Planning: The Art of the Perfect Fit

Effective logistics planning hinges on precise information. When you know the exact truck bed dimensions or trailer internal dimensions, you can make smarter decisions about routing, scheduling, and equipment allocation. This knowledge allows for better load consolidation, reducing the number of trips required and minimizing fuel consumption.

For complex shipments, detailed dimension knowledge helps determine if specialized equipment is needed or if standard dry vans will suffice. It streamlines the entire process, from warehouse loading to final delivery, making operations smoother and more predictable.

Customer Satisfaction: Delivering Promises, Not Problems

Ultimately, the goal of any shipping operation is to deliver goods to the customer on time and in perfect condition. Inaccurate assumptions about freight dimensions and available truck space can lead to delays, damage, and ultimately, unhappy customers. Imagine a scenario where a truck arrives, but your cargo simply won’t fit!

By precisely matching your cargo to the appropriate truck internal dimensions, you ensure a seamless process. This attention to detail reflects positively on your service, fostering trust and repeat business. It’s about delivering not just products, but also peace of mind.

Key Internal Dimensions to Understand: Deconstructing the Space

To truly master the art of load planning, you must become intimately familiar with the core internal dimensions of any truck or trailer. These three primary measurements—length, width, and height—combine to define the overall cubic capacity and dictate what can be transported.

Let’s break down each one, exploring its significance and the nuances involved.

Length: The Horizontal Stretch of Your Cargo Space

The internal length of a truck or trailer refers to the usable floor space from the front wall to the rear doors. This dimension is crucial for understanding how many pallets can be loaded end-to-end, or how long individual items can be. It’s often the first measurement considered when assessing cargo fit.

When measuring length, it’s vital to consider any internal obstructions. Some trailers might have bulkhead walls or refrigeration units that reduce the effective usable length. Always measure from the very inside of the front wall to the inside of the rear doors when fully closed. This provides the most accurate figure for your shipping dimensions.

For standard dry vans, lengths typically range from 28 feet (pup trailers) to 53 feet (full-size semi-trailers). Each foot of length can significantly impact the number of pallets you can carry, directly influencing efficiency and cost per unit. For example, a 53-foot trailer can typically accommodate 26 standard 40×48 inch pallets when loaded straight, or 30 pallets when "pinwheeled" (alternating direction).

Width: The Side-to-Side Span

Internal width measures the usable space from one sidewall to the other. This dimension is particularly critical when loading multiple items side-by-side or when dealing with wide cargo. It’s also where the infamous "wheel well" often makes its unwelcome appearance.

A common mistake is to assume the internal width matches the external width, which is rarely the case due to the thickness of the trailer walls and structural components. The trailer internal dimensions for width are typically around 98 to 102 inches for standard dry vans, but this can vary.

Pro tips from us: Always pay close attention to the space between the wheel wells. These protrusions significantly reduce the usable width in certain sections of the trailer, often limiting the width of items that can be loaded in those specific areas. For many trucks, the space between wheel wells can be as narrow as 48-50 inches, which is just enough for one standard pallet. Planning around these restrictions is key to efficient load optimization.

Height: The Vertical Clearance

The internal height is the usable vertical space from the trailer floor to the ceiling. This dimension determines whether your stacked goods or tall items will fit without scraping the roof or violating clearance regulations. It’s often overlooked until it becomes a costly problem.

When assessing height, always measure from the lowest point on the floor to the highest point on the ceiling, accounting for any internal crossbeams, insulation, or refrigeration units. For dry vans, typical internal height is around 108-110 inches (9 feet). However, refrigerated trailers (reefers) will have slightly less internal height due to the insulation and the refrigeration unit itself, often around 100-102 inches.

Common mistakes to avoid are forgetting about the height of your pallets or skids, or the added height of any dunnage or protective packaging. The usable internal height also needs to clear the door opening, which can sometimes be slightly lower than the internal ceiling height, especially in older models or specialized trucks. Always ensure your cargo can physically enter the truck.

Volume (Cubic Capacity): The Full Potential

The ultimate measure of a truck’s cargo capacity is its internal volume, calculated by multiplying the usable internal length, width, and height. This cubic capacity represents the total space available for your freight. It’s a vital figure for understanding how much "air" you might be shipping.

The formula is straightforward: Volume = Length × Width × Height.

For example, a standard 53-foot dry van with an internal width of 102 inches and an internal height of 110 inches offers approximately 3,900 cubic feet of space. However, this is theoretical maximum. The practical usable volume is often less due to irregular cargo shapes, gaps between items, and obstructions like wheel wells.

Understanding cubic capacity is paramount for calculating volumetric weight, which, as discussed earlier, directly impacts shipping costs. Effective freight shipping relies on maximizing this volumetric potential without exceeding weight limits.

Common Truck Types and Their Internal Dimensions: A Practical Overview

Different types of trucks and trailers are designed for specific purposes, and their internal dimensions reflect these specializations. Knowing the typical internal measurements for each common vehicle type is fundamental for any logistics professional.

Based on my experience, matching the right truck to the right cargo is one of the quickest ways to optimize costs and efficiency. Here’s a rundown of common truck types and their usual internal specifications:

Cargo Vans: The Agile Urban Workhorse

Cargo vans are the smallest enclosed vehicles used for commercial transport, ideal for local deliveries, last-mile logistics, and smaller, time-sensitive shipments. They are highly maneuverable and can navigate urban environments with ease.

• Typical Internal Length: 10-14 feet (120-168 inches)
• Typical Internal Width: 5-6 feet (60-72 inches)
• Typical Internal Height: 4.5-5.5 feet (54-66 inches)
• Approximate Cubic Capacity: 250-450 cubic feet

Pro tips from us: While smaller, cargo vans still benefit from smart loading. Use shelving or dividers to maximize vertical space and prevent items from shifting. These vans are perfect for packages, small furniture, and urgent documents.

Box Trucks (Straight Trucks): Versatility for Local and Regional Hauls

Box trucks, also known as straight trucks, are single-unit vehicles where the cargo area is directly attached to the chassis. They come in various sizes and are popular for local moving, retail deliveries, and LTL (Less Than Truckload) shipments. You’ll often see them with liftgates for easier loading and unloading.

• Common Lengths: 16 feet, 24 feet, 26 feet
• Typical Internal Length: 15-25 feet (180-300 inches)
• Typical Internal Width: 7.5-8 feet (90-96 inches)
• Typical Internal Height: 7-8 feet (84-96 inches)
• Approximate Cubic Capacity: 900-1,600 cubic feet

Based on my experience: The 26-foot box truck is a very common choice, offering substantial capacity without requiring a Commercial Driver’s License (CDL) in many jurisdictions, making it accessible for a wider range of drivers. Remember that the liftgate mechanism might slightly reduce the effective internal length at the very rear.

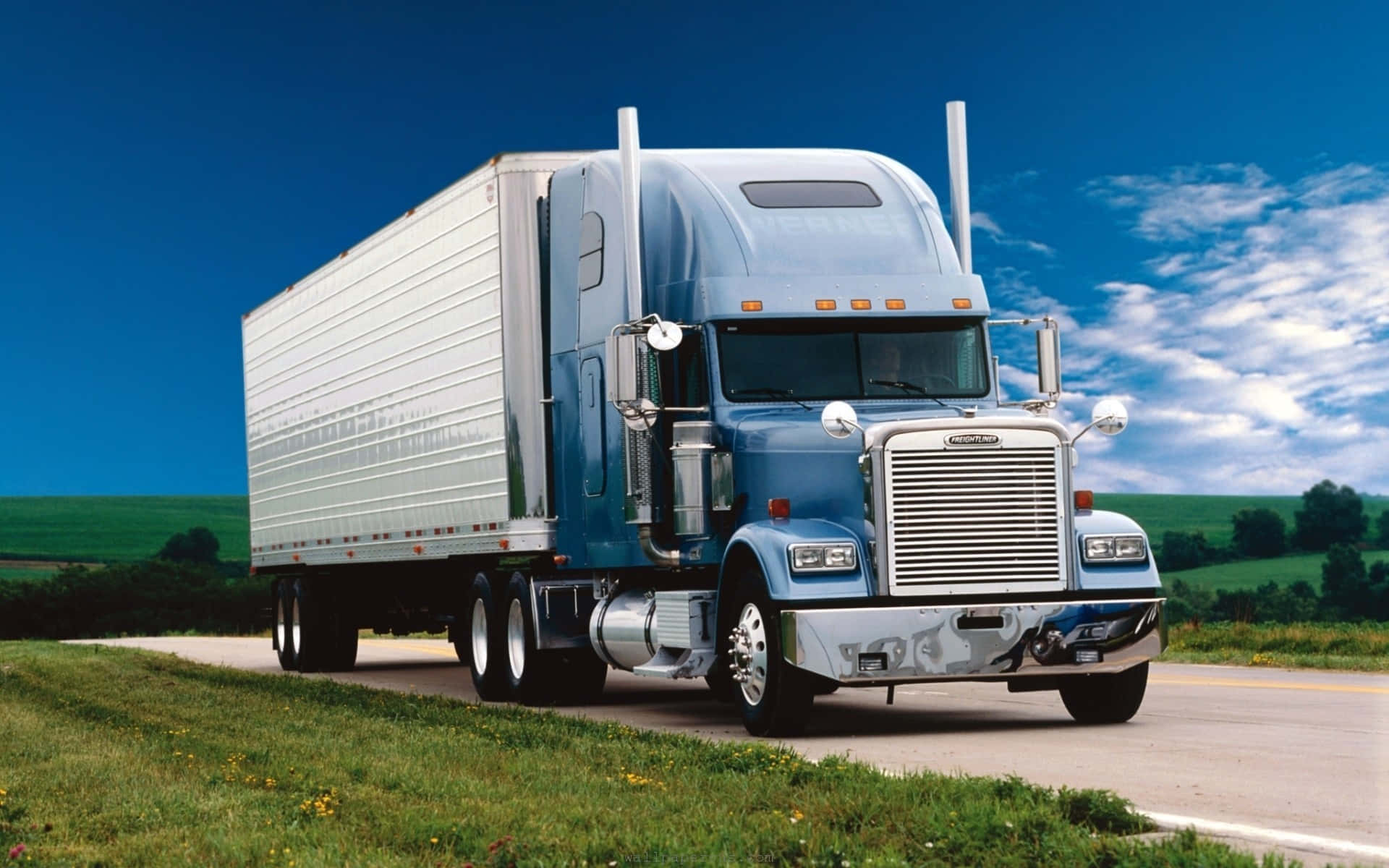

Semi-Trailers (Dry Van): The Backbone of Long-Haul Freight

Dry vans are the most common type of semi-trailer, used for transporting non-perishable goods that need protection from the elements. These are the workhorses of the long-haul trucking industry, forming the backbone of freight shipping.

• Common Lengths: 48 feet, 53 feet
• Typical Internal Length: 47-52.5 feet (564-630 inches)
• Typical Internal Width: 100-102 inches
• Typical Internal Height: 108-110 inches
• Approximate Cubic Capacity: 3,600-3,900 cubic feet

A 53-foot dry van is the industry standard for full truckload (FTL) shipments in North America, capable of holding 26 standard 40×48 inch pallets loaded straight, or up to 30 pallets when pinwheeled. Understanding these semi-truck dimensions is crucial for optimizing large-scale logistics.

Refrigerated Trailers (Reefers): Climate-Controlled Transport

Reefers are essentially dry vans equipped with a refrigeration unit and insulated walls, designed to transport temperature-sensitive goods like food, pharmaceuticals, and certain chemicals. The internal dimensions are slightly reduced compared to a standard dry van due to the added insulation and the space taken by the cooling unit.

• Common Lengths: 48 feet, 53 feet
• Typical Internal Length: 47-52 feet (564-624 inches)
• Typical Internal Width: 98-100 inches (due to insulation)
• Typical Internal Height: 100-102 inches (due to insulation and evaporator coils)
• Approximate Cubic Capacity: 3,300-3,700 cubic feet

Common mistakes to avoid are assuming a reefer has the same capacity as a dry van. That insulation, while vital for temperature control, will always eat into the internal dimensions, especially height and width. This can be a critical factor for tall or wide palletized goods.

Flatbed Trailers: Open-Air Versatility

While flatbeds don’t have "internal" walls in the traditional sense, understanding the usable space on their deck is still about internal dimensions for cargo placement. They are designed for oversized, irregularly shaped, or heavy loads that cannot fit into enclosed trailers.

• Common Lengths: 48 feet, 53 feet
• Typical Usable Deck Width: 8.5 feet (102 inches)
• Usable Deck Height (from ground): Varies greatly, but cargo height restrictions apply based on overall legal limits (often 13.5 feet from ground).

Pro tips from us: The challenge with flatbeds isn’t just about the deck dimensions but also about securing the load effectively. While there’s no roof, local and federal regulations dictate maximum cargo height and width, which effectively act as "internal" constraints for your freight.

Factors Affecting Usable Internal Space: Hidden Reductions

Even with standard internal dimensions in mind, several factors can further reduce the actual usable space within a truck or trailer. Ignoring these can lead to unexpected issues when loading.

Wheel Wells: The Width Intrusion

Wheel wells are perhaps the most common and frustrating culprit for reduced usable width. These structural bumps are necessary to house the wheels but protrude into the cargo area, especially in smaller box trucks and the rear sections of some semi-trailers.

The space between wheel wells can be significantly narrower than the overall internal width. Always account for this reduced width, particularly if you are loading multiple items side-by-side or have wide individual pieces of cargo.

Internal Reinforcements and Beams: Height and Width Obstructions

Some trailers, especially older models or those designed for heavy-duty use, may have internal support beams, cross-members, or structural reinforcements that slightly reduce the effective height or width at certain points. These are often designed to increase the structural integrity of the trailer but can create minor obstacles for large cargo.

A thorough visual inspection or precise measurement is the only way to confirm these potential intrusions.

Insulation (Refrigerated Units): The Trade-off for Temperature Control

As mentioned, the thick insulation required for refrigerated trailers directly reduces all internal dimensions—length, width, and height. This trade-off is essential for maintaining temperature, but it’s a critical factor to remember when calculating your cargo capacity.

Always factor in a few inches lost on each side and the top when planning shipments for reefers.

Liftgates and Ramps: Hindering Rear Access

While incredibly convenient, the mechanisms for liftgates or integrated ramps at the rear of some box trucks can sometimes slightly impede the very back portion of the cargo area. This might be a few inches of length reduction or an irregular shape near the door.

For sensitive loads, ensure you understand how these features affect the absolute maximum length you can utilize.

Securement Points and Tie-downs: Essential but Space-Consuming

Ratchets, D-rings, E-track systems, and other cargo securement points are vital for safety but can occupy small amounts of space. While usually negligible, for extremely tight fits, even these small protrusions can become relevant. Planning your load around these points can maximize efficiency.

Pro Tips for Measuring and Utilizing Truck Internal Dimensions

Leveraging truck internal dimensions effectively requires a combination of careful measurement, strategic planning, and an understanding of best practices. Here are some invaluable tips from years of experience in the logistics sector.

1. Always Measure Yourself: Don’t Rely Solely on Specs

While manufacturer specifications provide a good starting point, they are often theoretical. Based on my experience, actual internal dimensions can vary slightly due to manufacturing tolerances, wear and tear over time, specific modifications, or even different model years.

Always take your own measurements of the specific truck or trailer you intend to use, especially if it’s a critical load. Measure at multiple points for length, width (including between wheel wells), and height (including door opening clearance). This simple step can prevent significant headaches.

2. Consider Pallet Configurations: The Art of Stacking

Most freight moves on pallets, making their dimensions crucial. Standard North American pallets are 40×48 inches (GMA pallets). Understanding how these fit within trailer internal dimensions is key.

• Straight Loading: Pallets are loaded with the 48-inch side running along the length of the trailer. A 102-inch wide trailer can fit two 48-inch pallets side-by-side (96 inches total width), leaving 6 inches of wiggle room.
• Pinwheeling: Alternating the direction of pallets (one 40-inch side forward, the next 48-inch side forward) can sometimes squeeze in extra pallets, especially in 53-foot trailers. This requires careful planning.

For more detailed information on maximizing your load, you might find our article on "" to be particularly helpful.

3. Master Volumetric Weight Calculation: The Cost Factor

As discussed, volumetric weight can often be the basis for your shipping charges. Know how to calculate it accurately for different carriers, as the divisor (factor) can vary.

The general formula is: (Length x Width x Height of package) / Dimensional Factor.
The dimensional factor varies by carrier and service (e.g., 139 for air freight, 250 for ground freight in cubic inches per pound). Always confirm the specific factor with your chosen carrier. This proactive calculation can save you from unexpected billing adjustments.

4. Leverage Load Optimization Software: Precision Planning

For complex or large-scale operations, manual planning can be inefficient and prone to error. Load optimization software can be a game-changer. These tools take your cargo dimensions and the truck’s internal dimensions, then calculate the most efficient loading configuration.

They can account for weight distribution, stacking rules, and even mixed cargo types, providing visual representations of optimal loads. This technology drastically improves load optimization and reduces wasted space.

5. Prioritize Safety: Weight Distribution and Securement

Even with perfect internal dimension knowledge, safety remains paramount. Always ensure that your cargo’s weight is evenly distributed within the truck’s payload capacity. Overloading one axle or one side can lead to dangerous instability.

Also, invest in proper cargo securement. Use straps, bars, dunnage, and blocking to prevent shifting during transit. For further insights into securement, check out "".

Common Mistakes to Avoid When Dealing with Truck Internal Dimensions

Even experienced logistics professionals can fall prey to common pitfalls when it comes to truck internal dimensions. Being aware of these errors is the first step to avoiding them.

1. Underestimating Required Space: This is arguably the most common mistake. People often round down or forget to account for packaging, leading to cargo that simply won’t fit. Always add a buffer.
2. Ignoring Wheel Well Intrusions: As highlighted, wheel wells are notorious for reducing usable width. Failing to measure this specific dimension can mean a pallet fits everywhere except over the wheels.
3. Forgetting Door Opening Dimensions vs. Internal Height: The internal ceiling height of a trailer might be higher than the actual door opening at the rear. Always ensure your tallest cargo can physically pass through the door.
4. Not Accounting for Packaging Dimensions: The product itself might fit, but its protective packaging (crates, boxes, shrink wrap) adds crucial inches. Always measure the total packaged dimensions.
5. Overlooking Volumetric Weight Charges: Assuming your shipment will be charged by actual weight when its bulkiness means it will be charged by volumetric weight can lead to significant and unwelcome cost surprises.
6. Failing to Communicate Accurate Dimensions to Carriers: Providing vague or incorrect freight dimensions to your carrier can result in them dispatching an unsuitable truck, leading to delays, re-booking fees, or even refusal of service. Be precise and transparent.

The Future of Truck Dimensions and Logistics: Smarter Spaces

The evolution of truck internal dimensions and their utilization is ongoing. We’re seeing advancements in smart trailers equipped with sensors that can monitor internal space, weight distribution, and even detect shifting cargo in real-time. Autonomous loading and unloading systems promise even greater efficiency, precisely placing cargo to maximize every cubic inch.

Data analytics and AI are increasingly being used to predict optimal truck types and loading patterns based on historical data and real-time conditions. The focus remains on maximizing cargo capacity and minimizing waste, ensuring that logistics continues to become leaner, greener, and more efficient.

Conclusion: Your Blueprint for Logistics Success

Understanding truck internal dimensions is not merely a technicality; it’s a strategic imperative for anyone involved in logistics and freight shipping. From optimizing costs and ensuring safety to enhancing customer satisfaction, mastering these measurements is your blueprint for success. By meticulously planning, measuring accurately, and being aware of the nuances of different truck types, you gain a significant competitive edge.

Never underestimate the power of a few inches when it comes to efficient transportation. Arm yourself with this knowledge, apply these pro tips, and avoid common pitfalls. The effort you put into understanding the internal world of trucks will pay dividends, transforming your logistics operations from guesswork into a finely tuned, highly profitable endeavor. Start measuring, start optimizing, and drive your business forward! For official truck dimension regulations, you can refer to government transportation sites like the Federal Highway Administration.
