Moving, hauling, or managing logistics for your business can be a complex endeavor. One of the most critical decisions you’ll face is choosing the right box truck. Get it wrong, and you could face anything from wasted time and money to damaged goods or even legal issues. It’s not just about "how big is it?"—it’s about understanding a nuanced array of dimensions that impact everything from loading capacity to navigating tight city streets.
As an expert blogger and professional SEO content writer who has delved deep into the world of logistics and transport, I’ve seen firsthand the common pitfalls. Many people overlook essential measurements, focusing only on the most obvious ones. This comprehensive guide is designed to be your ultimate resource, breaking down 26 critical box truck dimensions. We’ll ensure you have all the knowledge to make informed decisions, whether you’re a first-time renter or a seasoned fleet manager.
The Ultimate Guide to Box Truck Dimensions: 26 Critical Measurements You Need to Know
Let’s unlock the secrets to choosing the perfect box truck and ensure your next haul is a success.
Why Understanding Box Truck Dimensions is Absolutely Crucial
Before we dive into the specifics, let’s establish why these dimensions aren’t just numbers on a spec sheet. They are the blueprint for your entire operation. Based on my experience, overlooking even one key measurement can lead to significant headaches.
For movers, knowing the interior cargo dimensions ensures all your furniture and boxes fit without a dangerous game of Tetris. Businesses rely on precise measurements to optimize routes, avoid costly overloads, and ensure their products reach customers efficiently. From a safety perspective, understanding exterior dimensions prevents accidents with low bridges or narrow driveways.
Pro tips from us: Always prioritize safety and legality. An informed choice not only saves you stress but also protects your cargo, your wallet, and potentially lives.

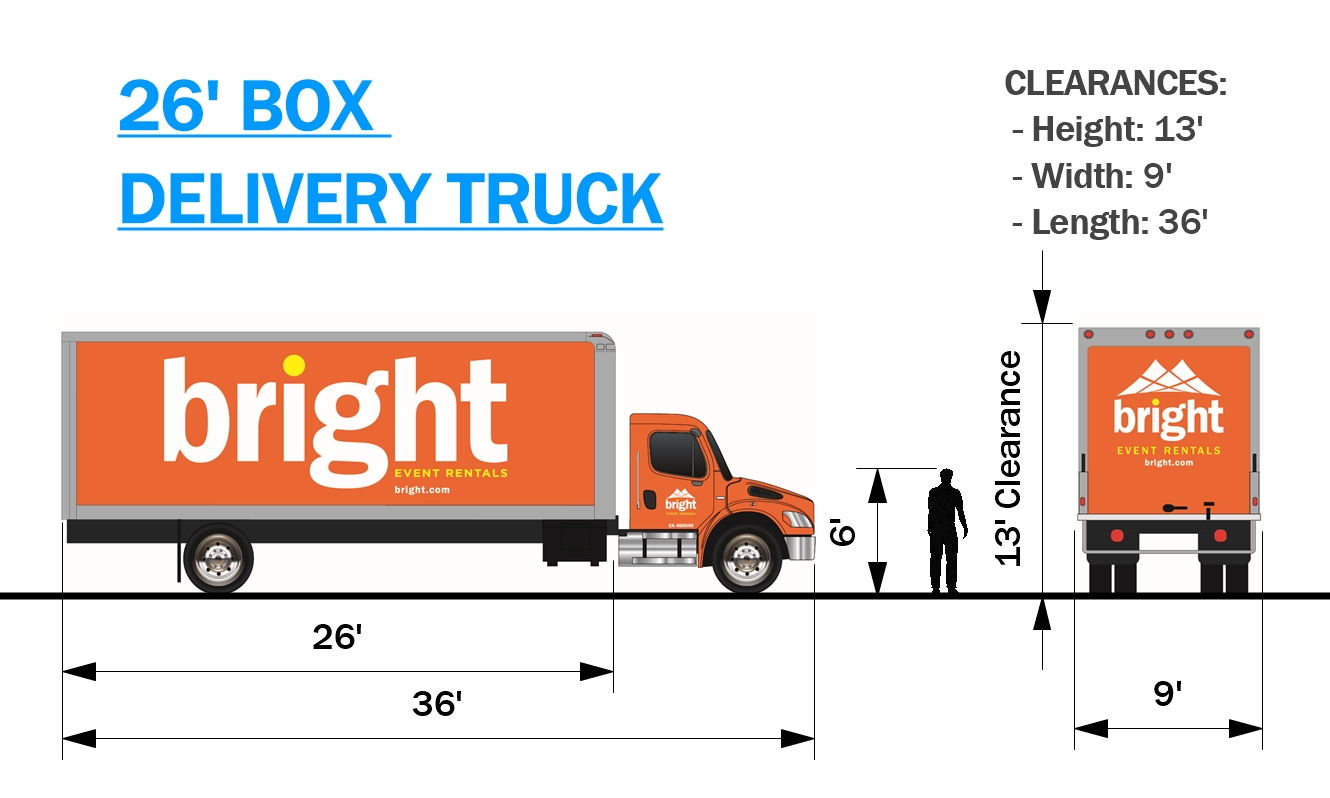

I. Exterior Dimensions: The Big Picture for Navigating the World
These dimensions dictate where your truck can go and what obstacles it can clear. They are crucial for route planning, parking, and general maneuverability.
1. Overall Length
This measurement spans from the very front of the truck (bumper) to the very back (end of the cargo box or liftgate). It’s the total length of the vehicle.
Understanding overall length is vital for navigating tight turns, parking spaces, and ensuring you don’t exceed length restrictions on certain roads or ferries. Longer trucks offer more cargo space but require more skill to drive.
Common mistakes to avoid are underestimating the swing radius of the rear when turning, especially in urban environments. Always factor in an extra foot or two for safety.
2. Overall Width (Including Mirrors)
This is the widest point of the truck, usually measured from the tip of one side mirror to the tip of the other. It’s significantly wider than just the cab or cargo box.
The overall width is critical for passing through narrow gates, driveways, or construction zones. It also impacts how much lateral space you need when sharing the road with other vehicles.
Pro tips from us: Always check the actual measurement with mirrors extended, as they can add substantial width. Some rental companies list body width, not mirror width.
3. Overall Height
Measured from the ground to the highest point of the truck, which is typically the top of the cargo box. This is one of the most frequently overlooked dimensions.
Overall height is paramount for clearing low bridges, tunnels, overhead wires, parking garage entrances, and even tree branches. Striking an overhead obstacle can cause catastrophic damage.
Based on my experience, this is where most new drivers make mistakes. Always know your truck’s height and pay attention to clearance signs.
4. Wheelbase
The wheelbase is the distance between the center of the front axle and the center of the rear axle. It’s a key factor in a truck’s stability and turning radius.
A longer wheelbase generally provides a smoother ride and better stability, especially at highway speeds. However, it also contributes to a larger turning radius, making the truck less agile.
Shorter wheelbases are easier to maneuver in tight spots but can feel less stable when loaded heavily or at speed.
5. Ground Clearance
This is the distance from the lowest point of the truck’s chassis to the ground. It determines how high off the ground the truck sits.
Good ground clearance is important if you’ll be driving over uneven terrain, speed bumps, or navigating driveways with steep inclines. Insufficient clearance can lead to scraping the undercarriage.
For standard moving or delivery, typical ground clearance is usually sufficient, but it’s worth noting if your route involves unpaved roads.
6. Turning Radius
The turning radius measures the smallest circle a truck can make when turning. It’s directly influenced by the wheelbase and steering geometry.
A smaller turning radius means the truck is more maneuverable in tight spaces, like crowded parking lots or cul-de-sacs. A larger radius requires more space to complete a turn.
Pro tips from us: Always test the turning radius in an empty lot if you’re unfamiliar with the truck. This can prevent frustrating situations later.
7. Cab Overhang
This is the distance from the front axle to the very front of the truck’s bumper. It’s often significant in cab-over-engine designs.
Cab overhang affects how close you can get to an obstacle before the bumper makes contact. It also influences the truck’s approach angle, which is important when going up ramps or inclines.
Understanding this helps prevent accidental scrapes when pulling up to curbs or loading docks.
8. Rear Overhang
The rear overhang is the distance from the center of the rear axle to the very end of the cargo box or liftgate. It can be quite substantial on box trucks.
A large rear overhang means the back of the truck will swing out more dramatically during turns, requiring extra caution. It also impacts the departure angle when backing down a ramp.
Common mistakes to avoid are forgetting this swing when making sharp turns, potentially hitting parked cars or street signs.
II. Interior Cargo Dimensions: What Fits Inside Your Box Truck
These are the measurements that truly matter when packing your goods. They dictate the usable space for your furniture, equipment, or inventory.
9. Cargo Box Length (Floor)
This is the usable length of the cargo area, measured along the floor from the rear door to the bulkhead behind the cab. It’s often the headline dimension.
The cargo box length determines how many linear feet of items you can fit. This is the primary number people look at when trying to gauge capacity for furniture or appliances.
Always measure your longest items to ensure they fit flat or diagonally if necessary.
10. Cargo Box Width (Maximum)
This is the widest point inside the cargo box, typically measured across the widest part of the interior walls. It gives you the absolute maximum width available.
Maximum width is crucial for fitting wide items like sofas, large appliances, or pallets side-by-side. It’s a key indicator of overall volume.
However, remember this is often reduced by wheel wells, which we’ll cover next.
11. Cargo Box Width (Between Wheel Wells)
This critical measurement is the distance between the interior wheel wells, which protrude into the cargo area. This is often the narrowest point on the cargo floor.
The space between wheel wells dictates the maximum width of items that can sit flush on the floor for the entire length of the box. Pallets, for example, often need to fit within this constraint.
Pro tips from us: Always use this measurement when planning how many standard-sized items (like moving boxes or pallets) you can fit side-by-side.
12. Cargo Box Height (Interior Clearance)
This is the vertical distance from the cargo floor to the interior ceiling of the box. It’s the maximum height your items can be.
Interior height is vital for stacking boxes, standing tall furniture, or ensuring appliances fit upright. Insufficient height can force you to lay items down, taking up more floor space.
Based on my experience, many people forget to measure the height of their tallest items, leading to last-minute repacking.
13. Door Opening Width
This is the clear horizontal opening when the rear roll-up or swing doors are fully open. It’s often slightly less than the maximum interior width.
The door opening width determines whether large items like refrigerators or wide pieces of furniture can actually pass through the entrance. Don’t assume it’s the same as the interior width.
Common mistakes to avoid are assuming your wide couch will fit just because the box is wide; the door might be narrower.
14. Door Opening Height
This is the clear vertical opening when the rear door is fully open. For roll-up doors, it’s typically less than the interior ceiling height.
Just like door width, door opening height dictates if tall items can be loaded or unloaded without tilting. Roll-up doors, in particular, can significantly reduce the effective height.
Always measure your tallest items and compare them to this door opening height, not just the interior ceiling height.
15. Ramp Length (If Applicable)
For trucks equipped with a loading ramp, this is the length of the ramp when fully extended. This affects the angle of incline.
A longer ramp provides a gentler slope, making it easier and safer to push heavy items or use dollies. Shorter ramps create steeper, more challenging inclines.
Pro tips from us: Consider the weight of your items and your physical strength when evaluating ramp length.
16. Ramp Width (If Applicable)
This is the width of the loading ramp. It determines how wide an item or piece of equipment can be wheeled up the ramp.
Ensure the ramp is wide enough for your dollies, appliance carts, or any specialized equipment you’ll be using. A narrow ramp can be a safety hazard.
Always verify ramp width, especially if you have oversized items.
17. Loading Dock Height (or Deck Height from Ground)
This is the height from the ground to the floor of the cargo box. It’s crucial for aligning with loading docks or determining the step-up height.
For businesses regularly using loading docks, matching this height to your dock is essential for smooth loading and unloading. For personal moves, it tells you how high you’ll need to lift items or how steep a ramp will be.
Common mistakes to avoid are assuming all box trucks have the same deck height; they vary significantly.
III. Weight-Related Dimensions & Capacities: The Heavy Stuff
Weight limits are non-negotiable. Exceeding them is illegal, dangerous, and can lead to hefty fines, vehicle damage, and accidents.
18. Gross Vehicle Weight Rating (GVWR)
The GVWR is the maximum permissible total weight of the truck, including the vehicle itself, its fuel, all fluids, passengers, and the entire cargo load. This is set by the manufacturer.
This is a critical safety and legal limit. Exceeding the GVWR can strain the truck’s frame, brakes, tires, and suspension, leading to failure.
Pro tips from us: Never guess your load weight. Use a scale if unsure, or calculate based on item weights.
19. Payload Capacity
Payload capacity is the maximum weight of cargo and passengers (excluding the driver) that the truck is designed to carry. It’s calculated by subtracting the truck’s curb weight from its GVWR.
This is arguably the most important weight dimension for anyone loading a box truck. It tells you exactly how much your stuff can weigh.
Always leave a buffer; don’t load right up to the maximum payload capacity.
20. Curb Weight
The curb weight is the weight of the truck itself, with a full tank of fuel and all standard equipment, but without passengers or cargo.
Curb weight helps you calculate the available payload capacity and understand the base weight of the vehicle. It’s the starting point for all weight calculations.
Knowing the curb weight is useful for understanding the truck’s base heft before you even put a single item in it.
21. Gross Combined Weight Rating (GCWR)
If the box truck is capable of towing a trailer, the GCWR is the maximum permissible total weight of the truck, its cargo, passengers, and the fully loaded trailer combined.
This dimension is vital for anyone planning to tow with their box truck. Exceeding it is extremely dangerous and illegal.
For official weight regulations, consult the for detailed guidelines.
22. Towing Capacity (If Applicable)
This is the maximum weight a box truck can safely tow behind it. Not all box trucks are equipped for towing.
If your moving plan includes towing a car or another trailer, you must ensure the box truck has a sufficient towing capacity and is properly equipped with a hitch.
Common mistakes to avoid are overloading the trailer or the truck itself, even if the individual weights seem fine.
23. Axle Weight Ratings (Front & Rear)
These ratings specify the maximum weight that can be safely supported by each individual axle (front and rear). The load needs to be distributed properly.
Uneven weight distribution can exceed individual axle ratings, even if the overall GVWR is within limits. This can cause tire blowouts, suspension damage, and loss of control.
Pro tips from us: Always load heavier items towards the front of the cargo box and center the weight over the axles for proper distribution.
IV. Specialized & Other Key Dimensions: Beyond the Basics
While less common, these dimensions can be critical for specific tasks or comfort.
24. Fuel Tank Capacity
This refers to the volume of fuel the truck’s tank can hold, usually measured in gallons or liters. It directly impacts your driving range.
Knowing the fuel tank capacity helps you plan fuel stops, especially on long-distance moves. Larger tanks mean fewer stops, saving time.
Based on my experience, underestimate your fuel needs at your peril, especially with heavier loads that consume more fuel.
25. Tire Size
The tire size includes dimensions like width, aspect ratio, and rim diameter (e.g., 225/75R16). It affects handling, load capacity, and speedometer accuracy.
Proper tire size is critical for safety and performance. Ensure tires are correctly inflated and in good condition, as they are fundamental to supporting the truck’s weight.
For more on truck maintenance, see our guide on .
26. Seating Capacity
This is the number of passengers the truck is designed to safely accommodate, including the driver. Most box trucks have seating for two or three people.
Seating capacity is important if you’re traveling with a crew or family members. Always adhere to the rated seating capacity for safety and legal reasons.
Common mistakes to avoid are cramming extra people into the cab; it’s both unsafe and illegal.
Factors Influencing Box Truck Dimensions
It’s important to remember that these dimensions aren’t static. Several factors can cause significant variations:
- Manufacturer/Model: Different brands (Ford, Freightliner, Isuzu, GMC, etc.) and specific models within those brands will have unique specifications.
- Intended Use: A truck designed for last-mile delivery might be smaller and more nimble than one built for long-haul furniture transport.
- Class of Truck: Box trucks range from light-duty (e.g., 10-foot moving trucks) to medium-duty (e.g., 26-foot delivery trucks), with dimensions scaling accordingly.
- Customizations: Aftermarket additions like specialized liftgates, extended fuel tanks, or modified cargo boxes can alter standard dimensions.
Choosing the Right Box Truck Size: A Practical Approach
With all these dimensions in mind, how do you make the right choice? Here’s a practical roadmap:
- Assess Your Cargo Thoroughly: Make a detailed inventory of everything you need to transport. Measure the length, width, and height of your largest and most numerous items. Estimate the total weight.
- Consider Your Route: Will you be driving on highways, through narrow city streets, or navigating residential areas with low-hanging trees? Your overall height, length, and turning radius become critical here.
- Check Legal Requirements: Always be aware of local, state, and federal regulations regarding vehicle dimensions and weight limits, especially if crossing state lines.
- Don’t Forget Access Points: Measure your loading dock, driveway entrance, garage door, and any other access points at both your origin and destination.
- Pro Tip: Always Go Slightly Larger: If you’re on the fence between two sizes, opt for the larger one. A little extra space is always better than not enough. It prevents damage and makes loading easier.
Common Mistakes to Avoid When Renting or Buying
- Underestimating Interior Space: People often forget about wheel wells or the reduced height of roll-up doors.
- Ignoring Weight Limits: Overloading is a serious safety hazard and can lead to costly fines.
- Forgetting Exterior Dimensions: Many accidents occur due to drivers not knowing their truck’s overall height or width.
- Not Checking Access Points: Don’t assume the truck will fit everywhere. Measure twice, drive once.
Conclusion: Empowering Your Next Haul with Knowledge
Understanding the 26 critical box truck dimensions isn’t just about memorizing numbers; it’s about making smart, safe, and efficient decisions. From navigating tight urban landscapes with knowledge of your overall width to ensuring every precious item fits perfectly thanks to precise interior measurements, every dimension plays a vital role.
Based on my experience, taking the time to thoroughly review these specifications will save you countless headaches, unexpected costs, and potential dangers. Empower yourself with this knowledge, plan meticulously, and choose your box truck with confidence. Your next move or delivery will be smoother, safer, and ultimately, more successful. Happy hauling!
