Navigating the Heights: Your Ultimate Guide to Box Truck Dimensions Height Lmctruck.Guidemechanic.com

Embarking on a move or planning commercial logistics often brings a myriad of questions, and perhaps one of the most critical, yet frequently overlooked, is the precise box truck dimensions height. This isn’t just about fitting your tallest couch; it’s about navigating bridges, clearing overhead structures, accessing loading docks, and ultimately, ensuring a safe and successful journey. As an expert in logistics and moving, I’ve seen firsthand how a misunderstanding of box truck height can lead to costly delays, damage, or even dangerous situations.

This comprehensive guide will delve deep into everything you need to know about box truck heights – from internal cargo space to external clearance, common sizes, and crucial factors that influence these measurements. Our goal is to equip you with the knowledge to confidently select, load, and drive your box truck, making this complex topic easy to understand and incredibly valuable.

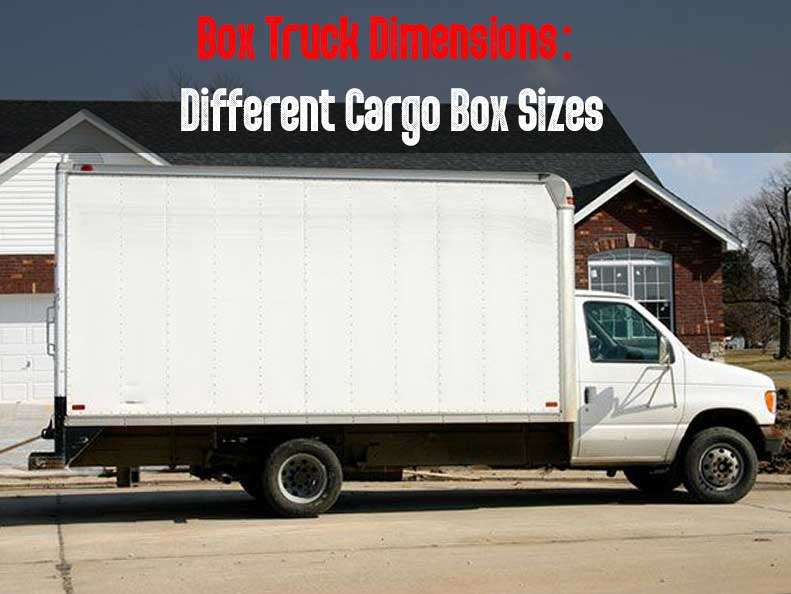

Navigating the Heights: Your Ultimate Guide to Box Truck Dimensions Height

Why Box Truck Height Is More Critical Than You Think

Understanding the exact height of a box truck goes far beyond simply knowing its capacity. It’s a foundational piece of information that impacts safety, efficiency, and legal compliance. Ignoring this crucial dimension can lead to significant headaches and expenses.

1. Bridge and Overpass Clearances

This is perhaps the most immediate and dangerous consequence of misjudging box truck height. Every year, countless trucks collide with low-hanging bridges or overpasses because drivers weren’t aware of their vehicle’s actual height. These incidents can cause severe structural damage to the truck, the infrastructure, and pose a serious risk to life.

Based on my experience, drivers often assume their rental truck will fit, or they rely on outdated GPS information. Always verify your truck’s height and cross-reference it with posted clearance signs.

2. Loading and Unloading Dock Compatibility

For businesses, the compatibility of a box truck’s bed height with existing loading docks is paramount. An incompatible height can make loading and unloading incredibly difficult, requiring additional equipment like ramps or liftgates, which slows down operations and increases labor costs.

Knowing your truck’s bed height helps ensure smooth transitions, preventing damage to goods and maximizing efficiency.

3. Accessing Garages, Warehouses, and Residential Areas

Many commercial buildings, warehouses, and even residential properties have height restrictions for their entrances or parking structures. Pulling up to a facility only to discover your truck is too tall can lead to wasted time, fuel, and frustration.

This is especially true for residential moves where driveways might lead to carports or garages with limited vertical space.

4. Maximizing Cargo Capacity

While external height is about clearance, internal height directly dictates the usable volume for your cargo. Knowing the internal height helps you plan how to stack items efficiently, preventing wasted space and potentially allowing you to fit everything into a smaller, more economical truck.

It’s about optimizing every inch of available space.

5. Safety and Legal Compliance

Operating a truck that exceeds legal height limits in certain areas can lead to fines and penalties. Furthermore, driving a truck that is too tall for a route you’ve chosen can compromise stability, especially in windy conditions or on uneven terrain.

Adhering to height guidelines ensures a safer journey for you, your cargo, and everyone else on the road.

Unpacking the Numbers: Internal vs. External Box Truck Height

When we talk about box truck dimensions height, it’s crucial to differentiate between two distinct measurements: the internal height and the external height. Both are important, but they serve different purposes.

Internal Box Truck Height

The internal height refers to the usable vertical space inside the cargo area of the box truck. This is the measurement from the floor of the truck bed to the ceiling of the cargo box. It’s the dimension that directly impacts how much you can stack and what items you can fit upright.

• Why it matters: This measurement is vital for determining if your furniture, appliances, or stacked boxes will fit without being damaged or needing to be laid down. A common mistake is to only consider the width and length, forgetting that a tall refrigerator might not clear the ceiling.
• Factors affecting it: The thickness of the truck’s floor, the structural ribs of the roof, and any internal lighting or ventilation systems can slightly reduce the advertised internal height. Always account for these minor deductions.
• Typical Ranges:
  • Small (10-12 ft trucks): Often around 6 feet 1 inch to 6 feet 6 inches (73-78 inches).
  • Medium (15-16 ft trucks): Typically 6 feet 6 inches to 7 feet (78-84 inches).
  • Large (20-22 ft trucks): Commonly 7 feet to 7 feet 6 inches (84-90 inches).
  • Extra Large (24-26 ft trucks): Can range from 7 feet 6 inches to 8 feet 6 inches (90-102 inches).

Pro tips from us: Always measure your tallest item before renting a truck. Don’t just eyeball it!

External Box Truck Height

The external height is the measurement from the ground to the very highest point of the box truck. This includes the chassis, tires, the cargo box itself, and any roof-mounted accessories like aerodynamic fairings, air conditioning units, or even marker lights.

• Why it matters: This is the critical measurement for clearances – bridges, tunnels, drive-thrus, parking garages, and overhead power lines. It’s the number that could prevent a costly collision.
• Factors affecting it:
  • Chassis and Suspension: Different manufacturers use varying chassis designs and suspension systems, which inherently change the truck’s overall stance.
  • Tire Size: Larger tires will naturally add a few inches to the external height.
  • Aerodynamic Fairings: Many trucks, especially larger ones, have fairings above the cab to improve fuel efficiency. These often add significant height.
  • Liftgates: While primarily at the rear, the hydraulic mechanisms and frame of a liftgate can sometimes contribute to the overall external height, especially when considering the highest point.
  • Roof-Mounted Units: AC units for the cab or cargo area, satellite dishes, or even roof racks for specialized equipment will add to the total external height.
• Typical Ranges:
  • Small (10-12 ft trucks): Usually around 9 feet to 10 feet (108-120 inches).
  • Medium (15-16 ft trucks): Commonly 10 feet to 10 feet 6 inches (120-126 inches).
  • Large (20-22 ft trucks): Often 10 feet 6 inches to 11 feet 6 inches (126-138 inches).
  • Extra Large (24-26 ft trucks): Can range from 11 feet 6 inches to 13 feet 6 inches (138-162 inches). Note that some larger commercial box trucks can approach the maximum legal height of 13 feet 6 inches in many states.

Common mistakes to avoid are assuming all trucks of the same advertised length have identical external heights. There can be variations even within the same rental company’s fleet.

Common Box Truck Sizes and Their Typical Heights

Box trucks come in various sizes, typically categorized by their cargo box length. Each size caters to different needs, and with that comes a range of typical internal and external heights. It’s important to remember these are averages, and specific models from different manufacturers (e.g., U-Haul, Penske, Budget, Ryder) will have slight variations.

1. 10-12 Foot Box Trucks (Small)

These are often the smallest trucks available for rent, ideal for studio apartments, dorm rooms, or local deliveries. They are relatively easy to drive and maneuver.

• Typical Internal Height: Around 6 feet 1 inch to 6 feet 6 inches (73-78 inches). This allows most people to stand comfortably inside.
• Typical External Height: Approximately 9 feet to 10 feet (108-120 inches). These smaller trucks are often the most forgiving when it comes to overhead clearances.

Based on my experience, these trucks are great for fitting into tighter residential areas, but always double-check garage or carport heights.

2. 15-16 Foot Box Trucks (Medium)

A popular choice for 1-2 bedroom apartments or smaller homes. They offer a significant step up in cargo capacity from the smaller models.

• Typical Internal Height: Generally 6 feet 6 inches to 7 feet (78-84 inches). This provides ample vertical space for most household items.
• Typical External Height: Usually 10 feet to 10 feet 6 inches (120-126 inches). While still manageable, this height starts to require more attention to bridge clearances.

These trucks strike a good balance between capacity and driveability for many movers.

3. 20-22 Foot Box Trucks (Large)

These trucks are suitable for 2-3 bedroom homes, offering substantial space for furniture and numerous boxes. They are a common choice for family moves.

• Typical Internal Height: Often 7 feet to 7 feet 6 inches (84-90 inches). This generous height can accommodate taller items like wardrobes and refrigerators standing upright.
• Typical External Height: Commonly 10 feet 6 inches to 11 feet 6 inches (126-138 inches). At this size, being acutely aware of all overhead clearances becomes absolutely non-negotiable.

Pro tips from us: Always ask the rental agent for the exact external height measurement of the specific truck you’re taking.

4. 24-26 Foot Box Trucks (Extra Large / Commercial Grade)

These are the largest non-CDL (Commercial Driver’s License) box trucks available, designed for large homes (3-5+ bedrooms) or significant commercial hauling. They offer maximum cubic footage.

• Typical Internal Height: Can range from 7 feet 6 inches to 8 feet 6 inches (90-102 inches). This is ideal for very tall items or extensive stacking.
• Typical External Height: Often 11 feet 6 inches to 13 feet 6 inches (138-162 inches). Some of these trucks can approach the maximum legal height for vehicles on many public roads, which is often 13 feet 6 inches.

For these larger vehicles, route planning with specific attention to height restrictions is crucial. Consider using truck-specific GPS systems. You can find more details on choosing the right box truck size for your needs in .

Key Factors That Influence Box Truck Height

While we’ve discussed typical ranges, it’s essential to understand that several factors can cause variations in a box truck’s height. Being aware of these will help you make more informed decisions and avoid surprises.

1. Manufacturer and Model Differences

Not all 16-foot box trucks are created equal. Each manufacturer (Ford, GMC, Isuzu, Hino, etc.) and even different models within the same brand will have unique chassis designs, cab styles, and cargo box constructions. These variations directly impact both internal and external dimensions.

For example, a low-profile box truck designed for urban deliveries might have a lower external height than a standard model built on a heavier-duty chassis.

2. Chassis and Suspension System

The foundation of any truck, its chassis, plays a significant role in determining overall height. A heavier-duty chassis designed for greater payloads might sit higher off the ground. Similarly, the type of suspension system (leaf springs, air suspension) can affect the truck’s unladen height and how much it "sags" when loaded.

Air suspension systems, for instance, can sometimes be adjusted for height, though this is less common on standard rental box trucks.

3. Tire Size and Condition

The diameter of the tires directly contributes to the truck’s ground clearance and, consequently, its external height. Even a difference of an inch or two in tire diameter can change the overall height by a noticeable amount.

Ensure tires are properly inflated, as under-inflated tires can slightly reduce height, but more importantly, compromise safety and fuel efficiency.

4. Roof-Mounted Accessories and Aerodynamic Fairings

Many box trucks, especially larger models, are equipped with features on the roof that add to their total external height.

• Aerodynamic Fairings: These curved structures above the cab reduce drag and improve fuel economy but are often the highest point of the vehicle.
• Air Conditioning Units: Some trucks have AC units mounted on the roof of the cab or even for the cargo area, adding several inches.
• Lighting and Antennas: Even small items like clearance lights, CB radio antennas, or GPS antennas can be the absolute highest point.

Always factor in these additions when measuring your truck’s external height.

5. Liftgates

While primarily used for loading and unloading, the entire liftgate mechanism, when fully retracted or stowed, can sometimes be the furthest protruding element at the rear, or its structural components can add to the overall external height. Always consider the highest point of the entire vehicle, including the liftgate assembly, if applicable.

Crucial Considerations When Dealing with Box Truck Height

Beyond just knowing the numbers, it’s vital to understand the real-world implications of box truck height and how to navigate potential challenges.

1. Bridge and Overpass Clearances: The Golden Rule

The single most important rule: ALWAYS know your truck’s exact external height and heed all posted clearance signs. These signs are there for a reason and represent the absolute minimum height.

• Never assume: Don’t assume a 12-foot truck will fit under a 12-foot 6-inch bridge. Road surfaces can change, and your specific truck might be slightly taller.
• Plan your route: Utilize truck-specific GPS apps or online mapping tools that allow you to input your vehicle’s height. These systems are designed to route you away from low clearances.
• Look for warning signs: Many states have advanced warning signs for low bridges, giving drivers time to take an alternate route. Be vigilant.

For specific state regulations and resources on truck clearances, an excellent external resource is the Federal Motor Carrier Safety Administration (FMCSA) website, which provides information on state-specific trucking regulations. You can find more information at https://www.fmcsa.dot.gov/.

2. Loading Dock Compatibility

Standard loading dock heights vary but are typically between 48 to 52 inches from the ground. Your box truck’s bed height needs to be compatible.

• Measure the bed height: Before arriving at a commercial facility, know your truck’s unladen bed height.
• Consider ramps/liftgates: If there’s a significant height difference, you’ll need a ramp or a truck equipped with a liftgate to facilitate safe and efficient loading/unloading.
• Internal height for dock doors: Also, consider the internal height of your truck relative to the height of the dock door itself.

3. Residential and Commercial Gateways/Garages

Many residential properties have carports, garages, or even decorative archways that can pose a height challenge. Commercial properties might have specific loading bay entrances or underground parking with severe height limits.

• Measure ahead: If moving to a new home or delivering to an unfamiliar commercial location, measure any potential obstacles beforehand.
• Don’t forget trees: Overhanging tree branches can also cause damage to the top of your truck, especially in older neighborhoods with mature trees.

4. Drive-Thrus and Parking Garages

A common oversight, especially for those less accustomed to driving large vehicles. Fast-food drive-thrus, bank drive-thrus, and multi-story parking garages almost always have height restrictions far lower than even the smallest box truck.

• Avoid them entirely: The safest bet is to simply avoid these areas altogether. Park and walk in if you need to access such establishments.

5. Permits and Regulations

While most standard rental box trucks (under 26,000 lbs GVWR) do not require a Commercial Driver’s License (CDL), they are still subject to certain state and local regulations regarding vehicle dimensions. Exceeding maximum height limits can result in fines.

Always be aware of the specific regulations for the states you’ll be traveling through.

Pro Tips for Measuring and Verifying Box Truck Height

Never rely solely on generic specifications or what a rental agent tells you. Always verify the height of the specific truck you are driving. This is the most crucial piece of advice I can offer.

1. Measure Your Specific Truck, Fully Loaded:

   • The most accurate way is to measure the truck yourself, from the ground to the absolute highest point. Do this after you’ve loaded it, as a heavy load can slightly compress the suspension, marginally changing the external height (though usually not significantly enough to rely on).
   • Use a sturdy tape measure or a laser measuring device for accuracy.

2. Identify the Highest Point:

   • Walk around the truck. Is it the aerodynamic fairing? An AC unit? A clearance light? The top corner of the box itself? Be thorough.

3. Don’t Just Eyeball It:

   • Human perception of height can be notoriously inaccurate. A few inches can make all the difference between a smooth journey and a disastrous collision.

4. Consider Your Load for Internal Height:

   • When planning your internal load, measure your tallest items precisely. Account for any padding or blankets you might use, which can add an inch or two.

5. Rental Company Documentation:

   • While you should still verify, reputable rental companies often provide a sticker inside the cab or on the rental agreement with the specific external height of that vehicle. Always cross-reference this with your own measurement.

Common mistakes to avoid are assuming "standard" heights, failing to measure after loading, or forgetting about roof-mounted accessories. These small oversights can lead to big problems.

Navigating Low Clearance Areas Safely

Even with careful planning, you might encounter unexpected low clearance warnings. Here’s how to handle them:

1. Pre-Plan Your Route Meticulously:

   • Use online mapping tools with satellite views to spot potential issues like overpasses, low wires, or narrow residential streets.
   • Utilize truck-specific GPS systems that allow you to input your truck’s height, weight, and length, ensuring you are routed on appropriate roads.

2. Always Observe Warning Signs:

   • Low clearance signs are legally binding and critically important. Slow down and read them carefully.
   • If a sign says "12 FT 6 IN," and your truck is 12 FT 5 IN, you might fit, but it’s a very risky gamble. When in doubt, don’t attempt it.

3. When in Doubt, Find an Alternative Route:

   • It is far better to take an extra 15-30 minutes for a detour than to risk a collision that could cost thousands in damages, fines, and potential injuries.
   • If you encounter a low clearance sign unexpectedly, look for turn-around points or side streets to reroute.

4. Use a Spotter:

   • If you absolutely must navigate a tight spot, and it’s safe to do so, have a passenger get out and spot for you, guiding you slowly.

Based on years of helping movers and businesses, the mantra "measure twice, cut once" applies perfectly to box truck height. Your vigilance ensures safety and efficiency.

Conclusion: Drive Smart, Drive Safe

Understanding box truck dimensions height is not just a technical detail; it’s a cornerstone of safe, efficient, and stress-free transportation. From the internal space that houses your precious cargo to the external clearance that dictates your route, every inch matters. By grasping the differences between internal and external height, recognizing the variations among truck sizes and manufacturers, and implementing our pro tips for verification and safe navigation, you empower yourself to make informed decisions.

Never underestimate the importance of checking, double-checking, and always knowing the exact height of the specific box truck you’re operating. Your due diligence will protect your belongings, prevent costly damages, ensure legal compliance, and most importantly, keep you and others on the road safe. Plan smart, measure precisely, and drive confidently.
