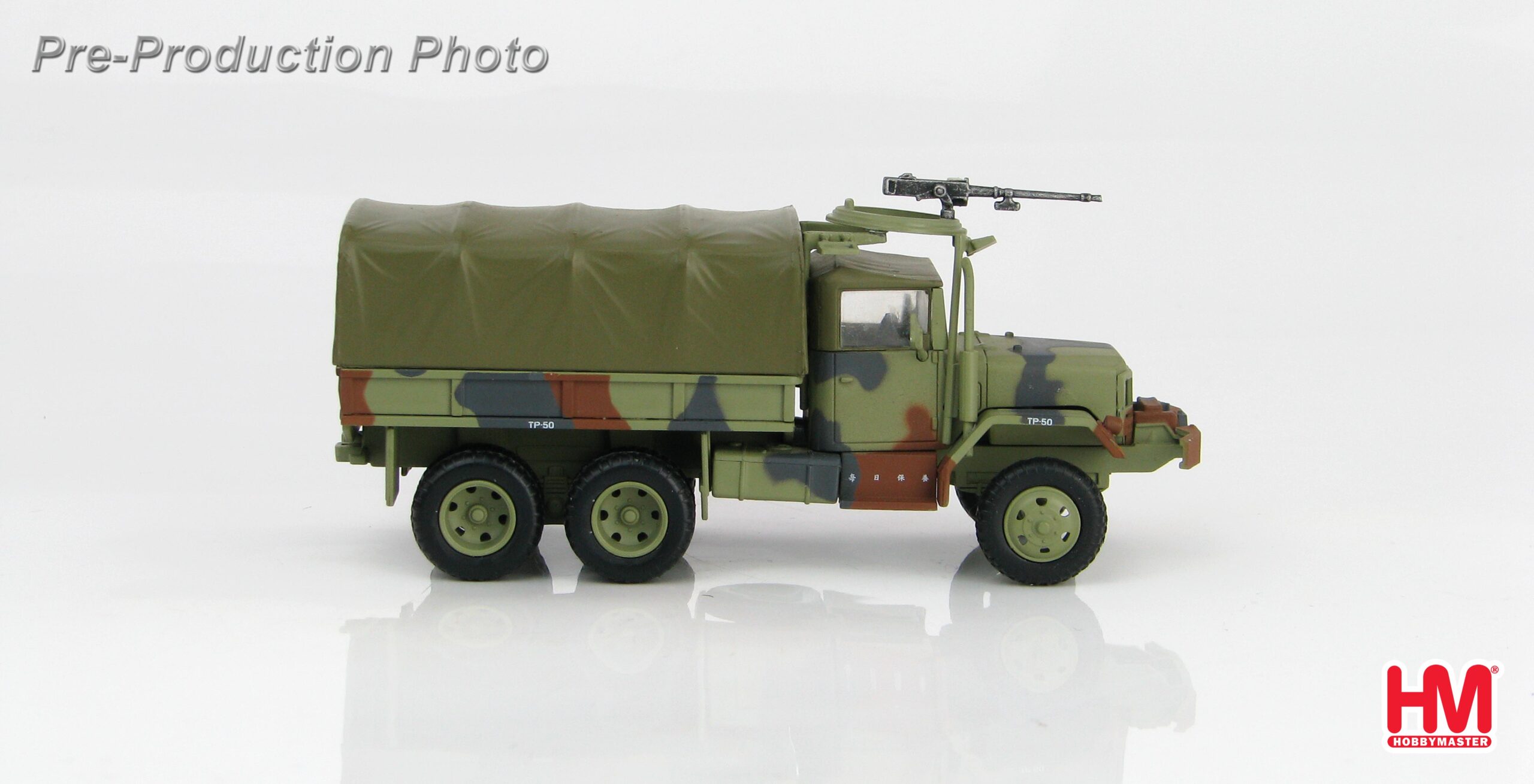

The M35 "Deuce and a Half" truck isn’t just a vehicle; it’s a legend. Born from military necessity, these robust machines were engineered to traverse some of the world’s most challenging landscapes. But what truly sets them apart, enabling their incredible off-road prowess? A critical factor is their impressive ground clearance.

As expert bloggers and enthusiasts, we’re here to unravel the mysteries of M35 truck ground clearance. This comprehensive guide will explore its significance, standard specifications, key components, and how you can maximize this crucial attribute for ultimate off-road domination. Prepare to transform your understanding of what makes the M35 an unstoppable force.

Conquering the Terrain: A Deep Dive into M35 Truck Ground Clearance

What is Ground Clearance and Why Does It Matter for the M35?

Before we delve into the specifics of the M35, let’s establish a foundational understanding. Ground clearance, simply put, is the shortest distance between a vehicle’s undercarriage and the ground. It’s often measured from the lowest point of the chassis or axle housings to the earth.

For any off-road vehicle, and especially for a heavy-duty military truck like the M35, ground clearance is paramount. It dictates a vehicle’s ability to navigate obstacles without sustaining damage to vital components. A higher clearance means you can roll over rocks, fallen logs, deep ruts, and uneven terrain that would leave lesser vehicles stranded or severely damaged.

The Unseen Protector: Guarding Vital Components

The underbelly of any truck houses critical systems: the engine oil pan, transmission, transfer case, driveshafts, and differentials. These components are essential for the truck’s operation, and their exposure to impacts from rocks or uneven ground can lead to catastrophic failure. High ground clearance acts as a natural shield, keeping these expensive and fragile parts out of harm’s way.

Without adequate clearance, even a simple trail can become a minefield. Imagine tearing open an oil pan on a sharp rock or bending a driveshaft on a submerged obstacle. These scenarios highlight why ground clearance isn’t just a number; it’s a measure of resilience and survivability in challenging environments. For the M35, built for war, this protection was non-negotiable.

Navigating Obstacles: The Gateway to Uncharted Territory

Beyond mere protection, superior ground clearance fundamentally expands a vehicle’s operational envelope. It allows the M35 to tackle terrains that would be impassable for standard trucks. Steep inclines, deeply rutted tracks, and rocky riverbeds become navigable challenges rather than insurmountable barriers.

This capability is crucial for military applications, where troops and supplies must reach remote locations regardless of infrastructure. For civilian enthusiasts, it means unlocking access to breathtaking wilderness areas or overcoming obstacles on an overland expedition. The M35’s inherent design with high clearance in mind makes it a true pioneer.

The Standard M35 Deuce and a Half Ground Clearance: Factory Prowess

The M35 series trucks were designed from the ground up to be rugged, reliable, and capable of operating in diverse and often hostile environments. Their original specifications reflect a clear emphasis on off-road performance, with ground clearance being a key consideration. Understanding these factory numbers provides a baseline for appreciating its capability.

Official Specifications: A Legacy of Elevation

Out of the factory, a standard M35 "Deuce and a Half" typically boasts impressive ground clearance. While exact figures can vary slightly depending on the specific M35 variant (e.g., M35A1, M35A2, M35A3) and tire configuration, the lowest point, usually the differential housing, commonly sits around 16 inches (approximately 40 cm) off the ground. This measurement is significant, especially considering the sheer size and weight of the vehicle.

This substantial clearance is a direct result of its military design brief. The engineers knew these trucks would encounter everything from deep snow and mud to rocky desert terrain. They built in the necessary height to ensure operational continuity under the harshest conditions.

Factors Influencing Standard Clearance: More Than Just the Axle

While the axle housings are often the lowest point, several other factory components contribute to the overall ground clearance. The large diameter of the standard military tires, typically 9.00R20 or 11.00R20, provides a significant portion of this height. These tires are tall, giving the entire truck a lift from the ground up.

The robust leaf spring suspension system also plays a crucial role. Designed to carry heavy loads over rough terrain, these springs maintain a considerable distance between the chassis frame and the axles. This combination of large tires and a sturdy, high-riding suspension is what defines the M35’s inherent ground clearance.

Comparison to Modern Vehicles: A Timeless Advantage

When comparing the M35’s standard ground clearance to many modern civilian off-road vehicles, its legacy becomes even more apparent. Many contemporary 4x4s, even those marketed as highly capable, might offer 8-10 inches of clearance. The M35, with its factory 16 inches, often doubles that.

This isn’t to say modern vehicles are inferior, but rather to highlight the specialized design of the M35. It wasn’t built for comfort or fuel economy; it was built for uncompromising capability. This single-minded focus resulted in a vehicle with truly exceptional off-road geometry right off the assembly line.

Key Components Affecting M35 Ground Clearance

Understanding ground clearance isn’t just about a single number; it’s about appreciating the interplay of various mechanical components. For the M35, several critical parts directly influence how high the truck sits and what it can clear. Let’s break down these essential elements.

Axles and Differentials: The Lowest Common Denominators

The front and rear axle housings, particularly the differential pumpkins, are almost universally the lowest points on any M35 truck. These bulky cast iron housings enclose the differential gears, which distribute power to the wheels. Their position means they are the first to make contact with obstacles on the ground.

The M35’s heavy-duty axles are incredibly robust, designed to withstand immense stress. However, their physical size and location dictate the absolute minimum ground clearance. Even with massive tires, the differential housing will always present a fixed lower limit. Protecting these components, therefore, becomes paramount in extreme off-road scenarios.

Tires: The Foundation of Your Stance

The tires on your M35 play an incredibly direct and significant role in determining ground clearance. Quite simply, the larger the diameter of your tires, the higher your truck will sit from the ground. This is a direct, measurable relationship: for every inch increase in tire diameter, your ground clearance increases by half an inch (since the axle is at the center of the tire).

M35 trucks typically came with 9.00R20 or 11.00R20 tires, which are already quite tall. Many enthusiasts upgrade to even larger sizes, such as 14.00R20 or "Super Singles," precisely for the significant boost in ground clearance they provide. This modification offers one of the most straightforward ways to gain height.

Suspension System: The Spring in Your Step

The M35’s suspension system, primarily consisting of leaf springs at all wheel positions, is fundamental to its ride height. These multi-leaf springs are designed to support heavy loads and absorb the punishment of rough terrain. The way these springs are configured, particularly their arch and how they are mounted relative to the axles, directly affects the distance between the chassis frame and the ground.

A robust and properly functioning suspension maintains the truck’s intended ride height. Worn-out or sagging springs can reduce clearance, while upgrades like re-arched springs or specific lift kits can increase it. The suspension system essentially creates the initial space for the tires and axles to sit beneath the truck’s main body.

Chassis and Frame Rails: The Structural Backbone

The M35’s ladder frame chassis is a massive, heavy-duty structure that forms the backbone of the truck. The frame rails themselves sit a considerable distance from the ground, contributing to the overall clearance. While not typically the lowest point, the height of the frame provides ample room for the driveshafts, transfer case, and other underbody components to be tucked up relatively high.

The structural integrity and height of these frame rails are crucial. They define the ‘belly’ of the truck, and while they are tough, increasing the distance between them and the ground provides an added layer of protection and capability.

Transfer Case and Driveshafts: Tucked Away but Vulnerable

The transfer case, which distributes power from the transmission to both front and rear axles, and the driveshafts that connect it to the axles, are also critical components that influence ground clearance. While typically mounted higher than the differential housings, they can still be vulnerable to impacts, especially on severely uneven terrain or when crossing deep ruts.

The M35’s design generally keeps these components relatively well-tucked within the frame rails. However, any modification that significantly alters driveline angles or lowers the transfer case can compromise this natural protection. Maintaining proper angles and ensuring components are as high as possible is always a goal for maximizing clearance.

Maximizing M35 Ground Clearance: Modifications and Upgrades

While the M35 boasts impressive factory ground clearance, there’s always room for improvement, especially for those pushing the limits of off-road exploration. Modifying an M35 requires a blend of mechanical knowledge, foresight, and a healthy respect for its original engineering. Based on my experience, careful planning is key to successful upgrades.

Tire Upgrades: The Biggest Bang for Your Buck

One of the most effective and common ways to increase M35 ground clearance is by installing larger diameter tires. As discussed, a bigger tire literally lifts the entire truck higher off the ground.

• Super Singles (14.00R20): This is perhaps the most popular upgrade. Replacing the factory dual wheels with larger, single 14.00R20 tires (often referred to as "Super Singles") offers a significant increase in diameter and, consequently, ground clearance. These tires not only look aggressive but provide a substantial boost in capability.
  • Pro Tip from us: When upgrading to Super Singles, remember that the wider tires may require fender modifications or wider axles for proper clearance, especially during articulation. Also, be prepared for a potential impact on gearing; larger tires effectively raise your gear ratio, which might make the truck feel less powerful off the line or impact top speed. You might need to recalibrate your speedometer as well.
• Other Large Diameter Tires: While Super Singles are common, other large military-spec tires can also be adapted. Always ensure the load rating of your chosen tires matches or exceeds the M35’s requirements. Safety should always be your top priority.

Suspension Lifts: Elevating the Chassis

Beyond tires, modifying the suspension system is the next major step in gaining ground clearance. This typically involves lifting the chassis relative to the axles.

• Spring-Over-Axle (SOA) Conversions: The M35 traditionally uses a "spring-under-axle" configuration, meaning the leaf springs are mounted below the axle housing. An SOA conversion involves relocating the leaf springs to sit on top of the axle housing. This modification can provide a substantial lift, often 6-8 inches or more, significantly increasing clearance under the frame rails and transfer case.
  • Based on my experience: An SOA conversion is not a simple bolt-on job. It requires significant welding, fabrication, and careful attention to driveline angles, steering geometry, and brake line extensions. Improper execution can lead to severe handling issues, premature wear on driveline components, or dangerous brake failures. Always have this done by a qualified professional or possess advanced fabrication skills yourself.
• Custom Spring Packs: Another approach is to install custom-made leaf spring packs with a greater arch or more leaves. This can provide a more moderate lift while maintaining the original spring-under-axle configuration. It’s often a less intrusive and more predictable way to gain a few inches of lift compared to a full SOA.
• Shackle Lifts (Limited): Taller shackles can provide a small lift, but going too tall can negatively impact suspension geometry and stability. They are typically used for minor adjustments rather than significant lifts.

Portal Axles (Advanced and Expensive)

For the absolute ultimate in ground clearance, portal axles are the pinnacle. These axles incorporate a gear reduction unit at the wheel hub, which effectively raises the center of the axle housing significantly relative to the wheel’s center. This means your differential pumpkin can sit much higher than with traditional axles, even with smaller tires.

While incredibly effective, portal axle conversions for an M35 are extremely complex, custom-fabricated, and very expensive. They are typically reserved for highly specialized builds where no compromise on clearance is acceptable. This modification fundamentally changes the truck’s driveline and requires expert engineering.

Body Lifts (Limited Impact on True Ground Clearance)

A body lift involves spacers between the truck’s cab and bed and the frame. While it raises the body, it does not increase ground clearance under the axles or other vital undercarriage components. Its primary purpose is to create more space in the fender wells for larger tires without altering the suspension, or to accommodate engine swaps.

While useful for fitting bigger tires, don’t confuse a body lift with a true ground clearance increase. The lowest points of your M35 remain exactly where they were.

Underbody Protection: Guarding Your Gains

While not directly increasing ground clearance, investing in robust underbody protection is crucial, especially after modifications. Skid plates for the transfer case, fuel tanks, and custom rock sliders along the frame rails will protect your valuable components from impacts.

• Pro Tip from us: Even with increased clearance, it’s wise to assume you’ll eventually make contact with an obstacle. Quality underbody armor ensures that when you do, it’s the armor taking the hit, not your critical drivetrain. This effectively maximizes the utility of your newfound clearance by reducing the risk of damage.

Driving Techniques and Strategies for Maximizing M35 Clearance

Having an M35 with excellent ground clearance is fantastic, but it’s only half the battle. To truly leverage this capability and prevent damage, effective driving techniques are just as crucial as any modification. Even the highest truck can get stuck or damaged with poor driving choices.

Line Choice: The Art of Anticipation

One of the most critical skills in off-road driving is "line choice." This means carefully planning your path over or around obstacles. Don’t just point your M35 forward and hope for the best. Instead, observe the terrain ahead. Identify the highest points on the ground that your tires can drive over, and the lowest points where your axles or differential can safely pass.

• Straddle Obstacles: If an obstacle like a rock or log is too tall to clear with your differential, try to position your wheels on either side of it, allowing the object to pass safely between your tires.
• Angle of Approach: When approaching steep inclines, deep ruts, or ledges, try to do so at an angle rather than head-on. This allows your tires to gain traction one at a time and can prevent your front or rear bumpers from digging into the terrain (improving approach and departure angles, which are related to clearance).

Slow and Steady: Precision Over Momentum

The M35 is a heavy, powerful truck. While momentum can sometimes help clear soft obstacles like sand or mud, it’s generally detrimental when navigating rocky terrain or large obstacles where ground clearance is critical. A slow, deliberate approach allows you to precisely place your wheels and react to the terrain.

• Avoid Slamming: Hitting rocks or ledges at speed, even with good clearance, can shock your suspension, damage tires, or worse, bend axles or driveshafts. The M35 is tough, but it’s not indestructible. Slow crawling minimizes impact forces and maximizes control.
• Common mistakes to avoid are relying solely on brute force. While the M35 has plenty of power, finesse and careful driving will get you further and prevent costly repairs.

Spotters: An Extra Pair of Eyes is Priceless

When tackling truly challenging terrain where ground clearance is at a premium, a reliable spotter outside the truck is invaluable. The driver’s view of the ground directly in front of and beneath the truck is often limited, especially with the M35’s long hood and high seating position.

A spotter can guide you precisely, telling you exactly where to place your tires, whether your differentials are about to make contact, or if you’re approaching a hidden obstacle. Clear communication between driver and spotter is essential for safe and effective navigation. It’s an investment in safety and prevents costly mistakes.

Common Mistakes to Avoid When Modifying M35 Ground Clearance

Modifying any vehicle, especially a heavy-duty military truck like the M35, comes with potential pitfalls. While the allure of increased ground clearance is strong, making certain mistakes can compromise safety, reliability, and the truck’s overall performance. Based on my experience in the off-road community, these are crucial errors to sidestep.

Ignoring Driveline Angles

One of the most frequent and damaging mistakes when lifting an M35 is neglecting driveline angles. When you raise the truck, especially with a significant suspension lift like an SOA conversion, the angles of your driveshafts change dramatically. If these angles become too steep, it puts immense stress on universal joints (U-joints) and can lead to premature failure, vibrations, and even catastrophic driveshaft separation.

• Pro Tip from us: Always check your driveline angles after a lift. You may need to install a transfer case drop (though this slightly reduces clearance) or, more effectively for a large lift, consider custom driveshafts with different U-joint types (e.g., CV joints) or a shimming of the axles to correct pinion angle.

Over-Lifting Without Proper Support

There’s a temptation to go as high as possible, but simply adding taller springs or blocks without addressing other components is a recipe for disaster. Over-lifting without extending brake lines, vent hoses, and wiring harnesses can lead to dangerous situations, such as ripped brake lines when the suspension fully articulates.

Furthermore, excessive lifts can put undue stress on steering components, track bars, and control arms (if applicable). This can result in poor handling, death wobble, and increased wear. A balanced approach that considers all interconnected systems is always best.

Neglecting Brake Line Extension

As mentioned, when you lift your M35, your axles move further away from your frame. If your brake lines are not extended, they can become taut and potentially rupture during suspension articulation (when one wheel drops into a hole, extending the spring). This can lead to a sudden and complete loss of braking capability – a truly dangerous scenario.

• Common mistakes to avoid are assuming factory lines will stretch enough. Always inspect and replace or extend brake lines with longer, DOT-approved lines specifically designed for lifted applications.

Not Considering Weight Distribution

M35 trucks are designed to carry significant loads. When you modify the suspension for lift, you must ensure that the new setup can still safely handle the truck’s weight and any cargo you intend to carry. A suspension that is too soft for the truck’s weight will sag, negating your clearance gains and leading to a bouncy, uncontrolled ride.

Conversely, a suspension that is too stiff will provide a harsh ride and reduce articulation, which is vital for maintaining tire contact with uneven terrain. Strive for a balance that supports the truck’s weight while allowing for adequate flex.

Forgetting About Steering Geometry

Lifting an M35 can significantly alter its steering geometry. Components like the drag link and tie rod are designed to operate within specific angles. When you lift the truck, these angles change, which can lead to bump steer (where bumps in the road cause the steering wheel to jerk) and poor steering response.

• Based on my experience: Often, dropped pitman arms or custom steering linkages are necessary to correct these angles after a substantial lift. Failure to address steering geometry can make the truck unsafe and difficult to control, especially at higher speeds. Always prioritize safety and control over sheer height.

The M35’s Legacy: Why Its Clearance Still Matters

The M35 "Deuce and a Half" isn’t just a relic of military history; it’s a testament to robust engineering and timeless capability. Its inherent ground clearance, a cornerstone of its design, is a prime example of why these trucks continue to captivate enthusiasts, off-roaders, and preppers worldwide. The decisions made by its original designers continue to resonate today.

This iconic truck was built for a singular purpose: to move men and material across any conceivable terrain, under any conditions. Its generous ground clearance was not an afterthought but a fundamental requirement for mission success. It meant the difference between delivering vital supplies to the front lines and getting bogged down miles from the objective.

Today, this design philosophy translates into incredible utility for civilian owners. Whether for extreme overland adventures, tackling the toughest trails, or simply having a vehicle that laughs in the face of deep snow or flooded roads, the M35’s clearance remains its superpower. It allows owners to explore places few other vehicles can reach, making it a true symbol of freedom and capability.

The M35’s enduring appeal is intrinsically linked to its ability to overcome obstacles. Its high stance provides not just physical clearance but also a psychological advantage, instilling confidence in the driver to tackle challenges head-on. As long as there are rugged landscapes to explore and demanding tasks to accomplish, the M35’s ground clearance will remain a celebrated and essential attribute.

Conclusion: Elevating Your M35 Experience

We’ve journeyed deep into the world of M35 truck ground clearance, uncovering its fundamental importance, factory specifications, and the many ways to enhance it. From the crucial role of axles and tires to advanced suspension modifications and essential driving techniques, it’s clear that ground clearance is not just a measurement; it’s a defining characteristic of the legendary M35.

Whether you’re restoring a historical military vehicle, building an ultimate off-road beast, or simply appreciating the engineering marvel that is the Deuce and a Half, understanding and optimizing its ground clearance is key. By applying the insights shared here – from strategic tire upgrades to critical driveline angle considerations – you can unlock even greater capabilities from your M35.

Remember, responsible modification, thoughtful driving, and a commitment to safety will ensure your M35 continues to conquer any terrain you throw at it. The road less traveled awaits, and with a well-prepared M35, you’re ready to forge your own path.

For more insights into optimizing your M35’s off-road performance, you might find our article on helpful. And if you’re interested in other aspects of M35 maintenance, check out our guide on . For detailed historical specifications and discussions by fellow enthusiasts, sources like Steel Soldiers provide excellent insights into these magnificent vehicles.
